Toyota Sienna 2010-2026 Owners Manual: Assist grips

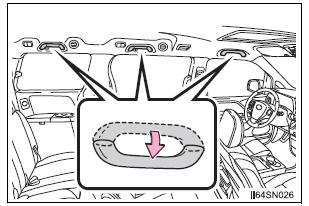

Toyota Sienna. Assist grips


An assist grip installed on the ceiling can be used to support your body while sitting on the seat.

Toyota Sienna. Assist grips


An assist grip installed on the pillar can be used when getting in or out of the vehicle and others.

WARNING Type A: Do not use the assist grip when getting in or out of the vehicle or rising from your seat.

NOTICE To prevent damage to the assist grip, do not hang any heavy object or put a heavy load on the assist grip.
