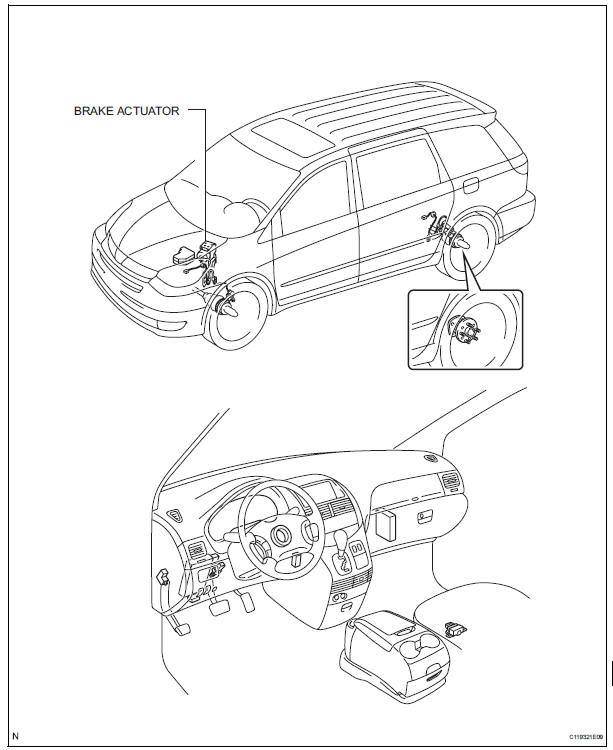

Toyota Sienna Service Manual: Brake actuator (w/ vsc)

TS and CG Terminal Circuit

DESCRIPTION In the sensor check mode, a malfunction of the speed sensor that cannot be detected when the vehicle is stopped is detected while driving. Transition to the sensor check mode can be ...

On-vehicle inspection

1. CONNECT INTELLIGENT TESTER (a) Connect the intelligent tester to the DLC3. (b) Start the engine and run at idle. (c) Select the ACTIVE TEST mode on the intelligent tester. HINT: Pleas ...
