Checking fluid level

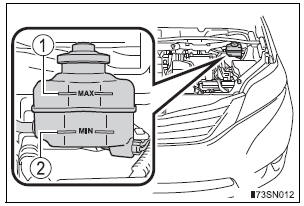

The brake fluid level should be between the “MAX” and “MIN” lines on the tank.
Adding fluid

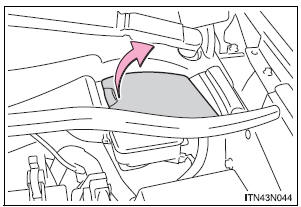

Lift the cover off.
Make sure to check the fluid type and prepare the necessary item.
Brake fluid can absorb moisture from the air
Excess moisture in the brake fluid can cause a dangerous loss of braking efficiency.
Use only newly opened brake fluid.
WARNING When filling the reservoir Take care as brake fluid can harm your hands and eyes and damage painted surfaces. If fluid gets on your hands or in your eyes, flush the affected area with clean water immediately. If you still experience discomfort, see a doctor. |
NOTICE If the fluid level is low or high It is normal for the brake fluid level to go down slightly as the brake pads wear out or when the fluid level in the accumulator is high. If the reservoir needs frequent refilling, there may be a serious problem. |
