Toyota Sienna 2010-2026 Owners Manual: Bulb locations
Front

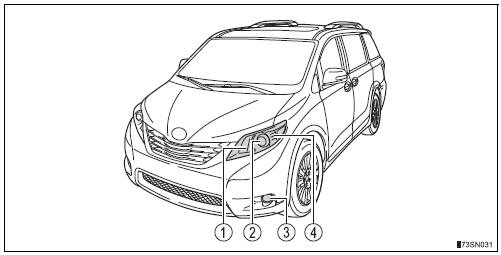

- Vehicles without daytime running lights or with bulb type daytime running lights
- Headlight high beam and daytime running lights (if equipped)
- Headlight low beam (halogen bulb)
- Fog light (if equipped)
- Front turn signal/parking and front side marker lights

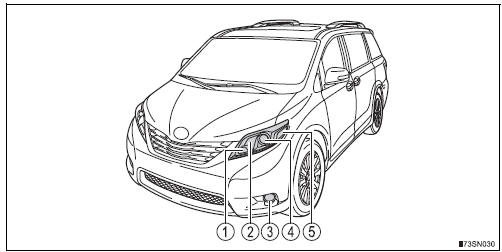

- Vehicles with LED type daytime running lights
- Front turn signal light
- Headlight high beam
- Fog light
- Headlight low beam (halogen bulb)
- Front side marker light
Rear

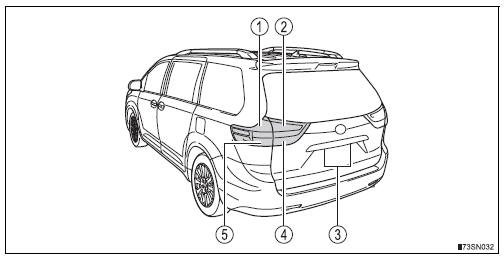

- Vehicles with bulb type stop/tail lights
- Rear turn signal light
- Back-up light
- License plate lights
- Tail light
- Stop/tail lights

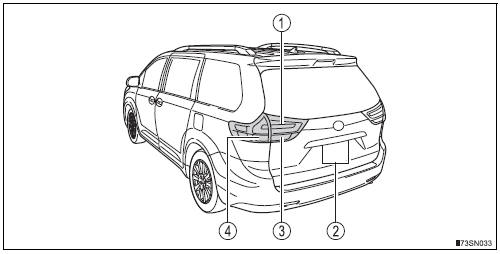

- Vehicles with LED type stop/tail lights
- Tail light
- License plate lights
- Back-up light
- Rear turn signal light
Light bulbs
You may replace the following bulbs by yourself. The difficulty
level of replacement varies depending on the bulb. If necessary
bulb replacement seems difficult to perform, contact your Toyota
deal ...
Replacing light bulbs
Headlight low beams (halogen bulb)
For left side only: Open the fuse box cover.
Unplug the connector while
pushing the lock release.
Turn the bulb base counterclockwise.
...
