Toyota Sienna Service Manual: Diagnostic trouble code chart

Toyota Sienna Service Manual / Supplemental restraint system / Airbag system / Diagnostic trouble code chart

1. DTCS FOR AIRBAG SYSTEM

If a malfunction code is displayed during the DTC check, check the circuit listed for the code in the table below (Proceed to the page listed for that circuit).

HINT:

When the SRS warning light remains on and the DTC output is the normal system code, a voltage source drop is likely to occur. This malfunction is not stored in memory by the center airbag sensor assembly. If the warning light will automatically go off.
When 2 or more codes are indicated, the code with the lower number appears first.
If a code is not listed on the display chart, the center airbag sensor assembly may have failed.
In the case of any malfunction concerning an open circuit, short to ground, or short to B+ due to a squib, other trouble codes may not be detected. In this case, repair the malfunction currently indicated and then perform malfunction diagnosis again.
When DTC B1150/23 is detected as a result of troubleshooting for the Airbag System, perform troubleshooting for the Occupant Classification System as shown in the chart below.
Mark in the check mode column:
*1: DTC is not corresponding to the check mode.
*2: DTC is corresponding to the check mode.
DTC which has the mark of the *3 is output only the equipped car of side airbag.

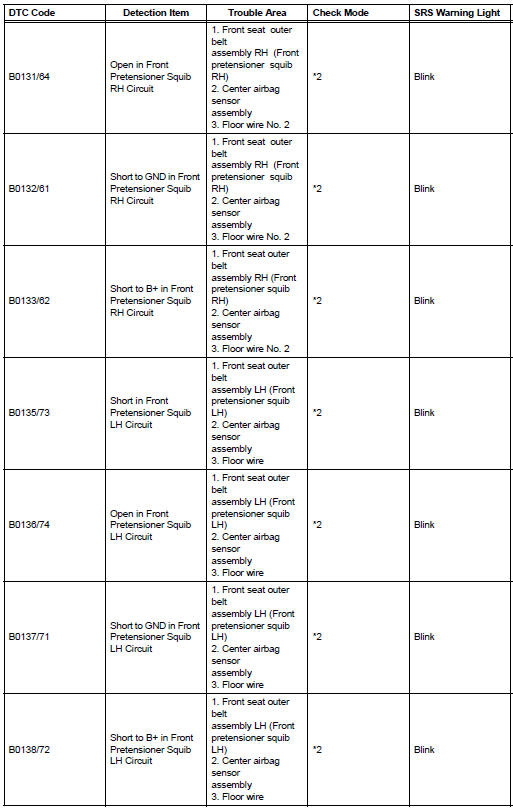

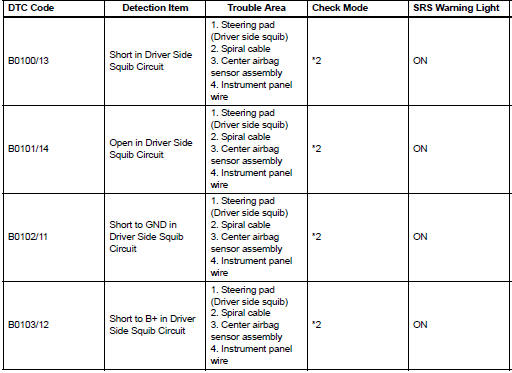

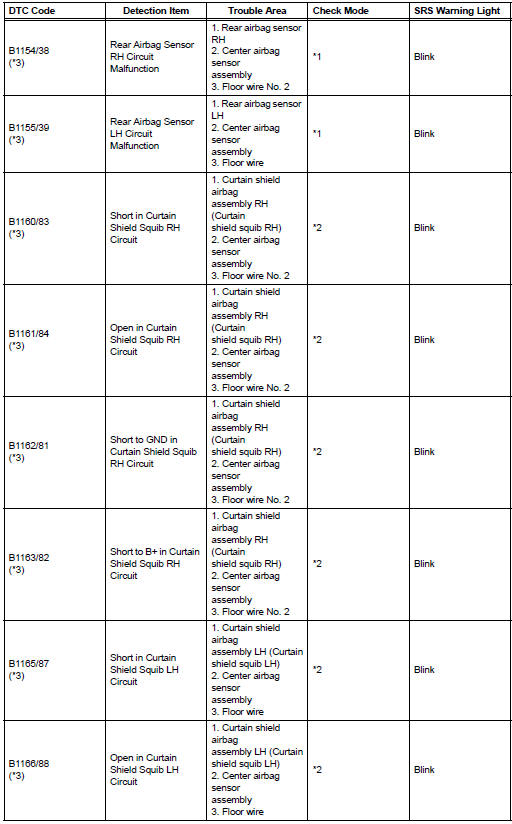

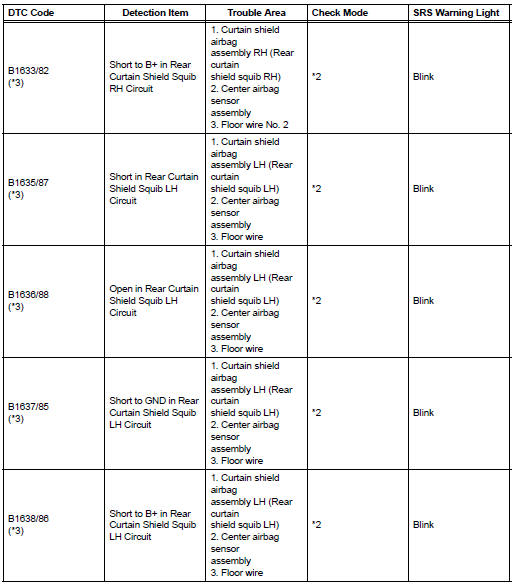

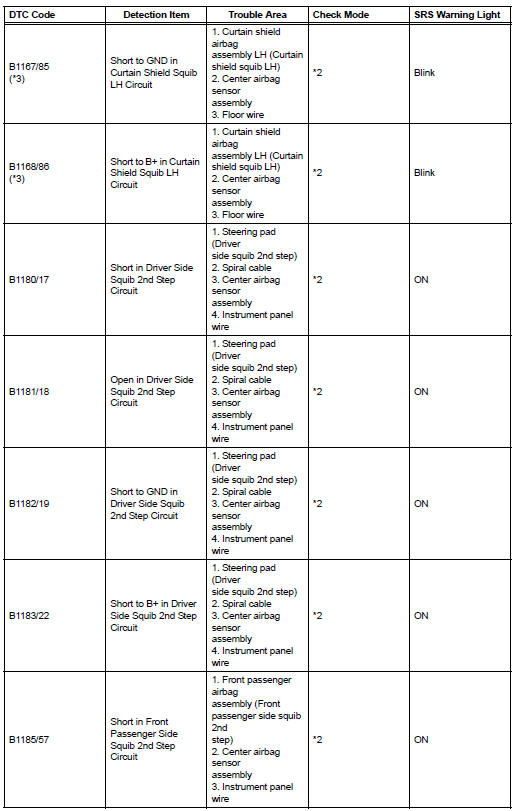

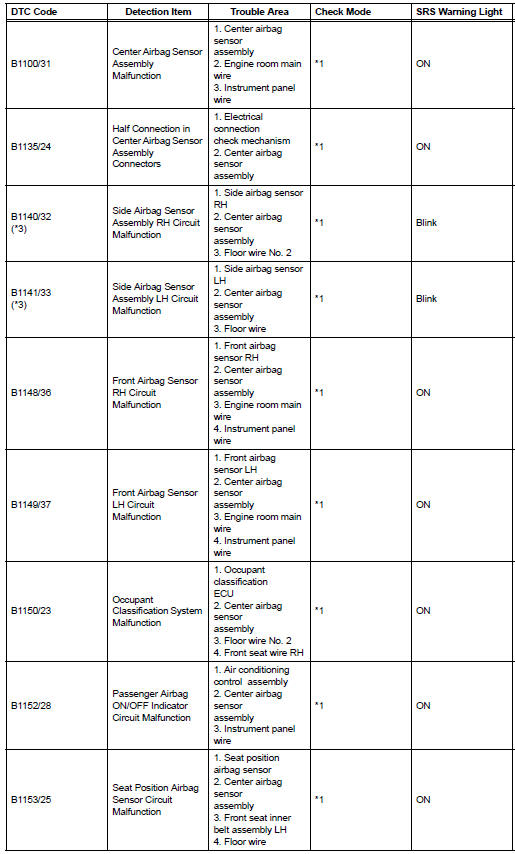

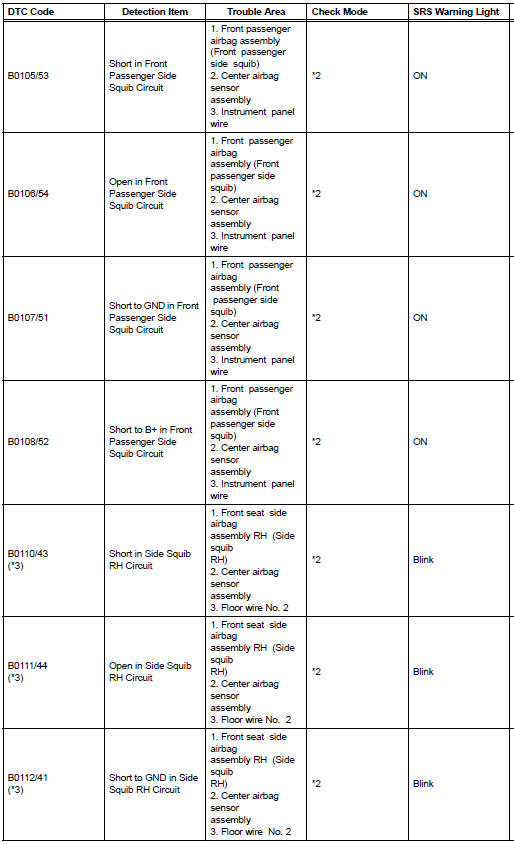

AIRBAG SYSTEM

AIRBAG SYSTEM
