Toyota Sienna Service Manual: Disposal

1. DISPOSE OF SHOCK ABSORBER ASSEMBLY REAR LH

DISPOSE OF SHOCK ABSORBER ASSEMBLY REAR LH

(a) Fully extend the shock absorber rod.

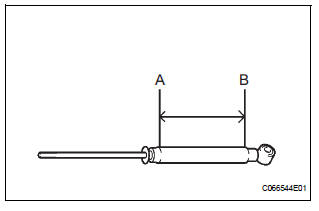

(b) Using a drill, make a hole in the cylinder as shown in the illustration to discharge the gas inside the cylinder.

CAUTION:
  • When drilling, since the fragments may fly out, work carefully.
  • The discharged gas is colorless, odorless and non-poisonous.
