Toyota Sienna Service Manual: Disposal
HINT: The tire pressure warning valve and transmitter is powered by a lithium battery. When disposing of the tire pressure warning valve and transmitter, remove the battery and dispose of it correctly.
1. DISPOSE OF TIRE PRESSURE WARNING VALVE AND TRANSMITTER

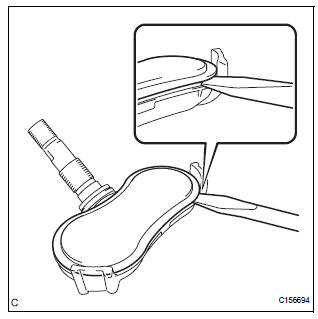

(a) Use the tip of a screwdriver to pry off the back cover.
(b) The battery and base board covered with resin are exposed. While taking out the battery, cut the 2 terminals that connect the battery to the base board.
Installation
1. INSTALL TIRE PRESSURE WARNING VALVE AND TRANSMITTER
(a) Insert the tire pressure warning valve and
transmitter into the valve installation hole. Insert it
from the inside of the rim so that ...
