Toyota Sienna Service Manual: Front axle hub

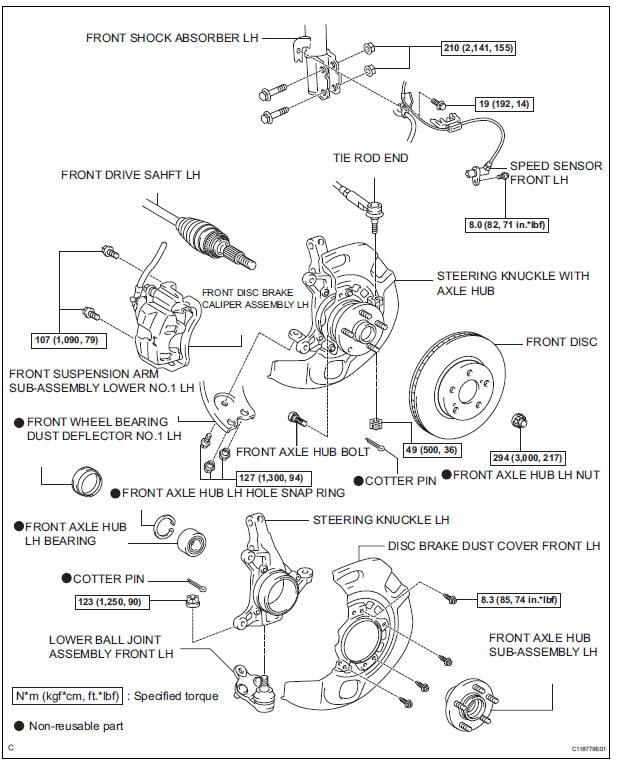

COMPONENTS

Front axle hub

Front axle hub bolt
COMPONENTS Replacement HINT: Replace the RH side using the same procedures as for the LH side. 1. REMOVE FRONT WHEEL 2. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY LH (See page AH-5) 3. REM ...

On-vehicle inspection
1. INSPECT FRONT AXLE HUB BEARING BACKLASH (a) Using a dial gauge, check for backlash near the center of the axle hub. Maximum: 0.05 mm (0.0020 in.) If backlash exceeds the maximum, replace t ...
