Toyota Sienna 2010-2026 Owners Manual: Grocery bag hooks
The hooks are designed to hang things like a grocery bag.

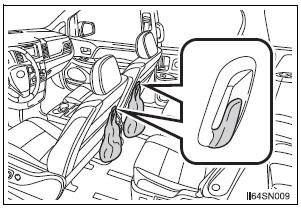

- Type A (front seatback) (if equipped)

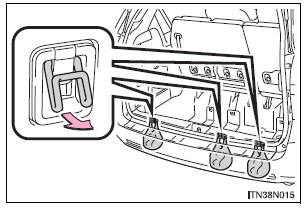

- Type B (third seatback)

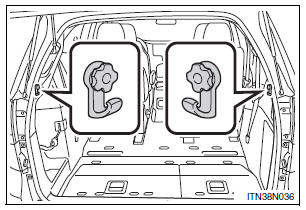

- Type C (luggage compartment)
- Type D (luggage compartment)
Pull the hook up.
| WARNING
Type C: When not in use, keep the grocery bag hook stowed.
Injuries may result in the event of sudden braking, sudden swerving or an accident. |
| NOTICE Type A and B: Do not hang any object heavier than 8.8 lb. (4 kg) on the grocery bag hook. |
