Toyota Sienna Service Manual: Hazard warning switch
INSPECTION

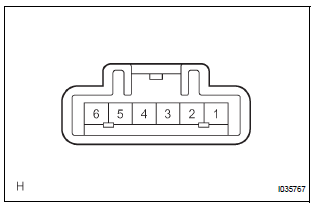

1. HAZARD WARNING SIGNAL SWITCH ASSEMBLY
- Check that there is resistance between the terminals at each switch position as shown in the chart.
Resistance
- Inspect illumination operation.
- Connect the positive (+) lead from the battery to the terminal 6 and negative (-) lead to the terminal 5, then check that the illumination comes on.
Turn signal light switch
ON-VEHICLE INSPECTION
1. INSPECT TURN SIGNAL FLASHER CIRCUIT
Measure voltage between the terminals as shown in
the chart below.
Voltage
Connect the connector to turn the si ...
Headlight leveling switch
ON-VEHICLE INSPECTION
1. HEADLIGHT LEVELING SWITCH
Connect the battery positive (+) lead to the terminal
1 and the battery negative (-) lead to the terminal 5.
Measure the res ...
