Toyota Sienna Service Manual: Monitor result information

If you use a generic scan tool, multiply the test value by the scaling value listed below.

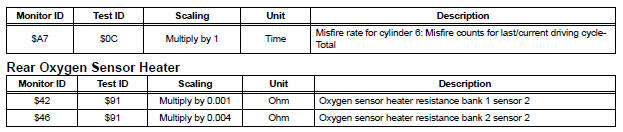

Monitor result information

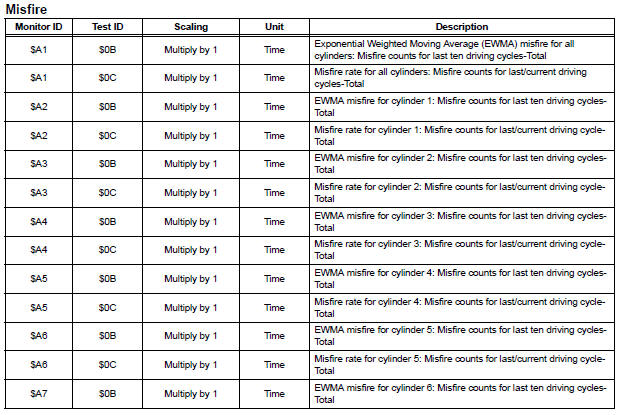

Monitor result information

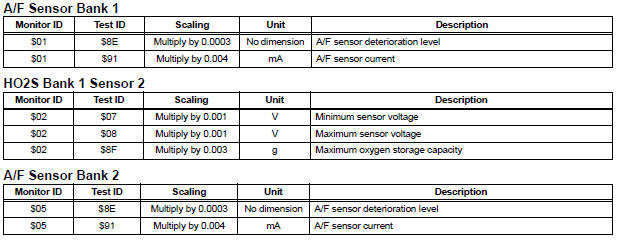

Monitor result information

Monitor result information

Check component status
(a) Compare the test value with the minimum test limit (MIN LIMIT) and maximum test limit (MAX LIMIT). (b) If the test value is between the minimum test limit and maximum test limit, the componen ...

Readiness monitor drive pattern
...
