Toyota Sienna Service Manual: On-vehicle inspection

Toyota Sienna Service Manual / Axle / Front axle hub / On-vehicle inspection

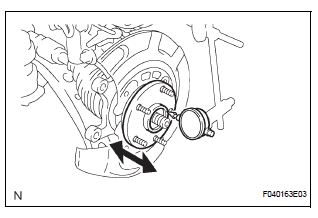

1. INSPECT FRONT AXLE HUB BEARING BACKLASH

INSPECT FRONT AXLE HUB BEARING BACKLASH

(a) Using a dial gauge, check for backlash near the center of the axle hub.

Maximum: 0.05 mm (0.0020 in.)

If backlash exceeds the maximum, replace the bearing.

NOTICE: Ensure that the dial gauge is set at right angles to the measurement surface.

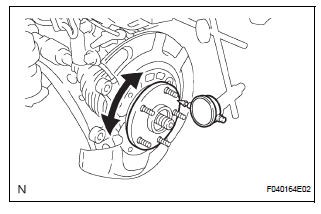

2. INSPECT FRONT AXLE HUB BEARING DEVIATION

INSPECT FRONT AXLE HUB BEARING DEVIATION

(a) Using a dial gauge, check for deviation in the surface of the axle hub outside the hub bolt.

Maximum: 0.05 mm (0.0020 in.)

If deviation exceeds the maximum, replace the axle hub.

NOTICE: Ensure that the dial gauge is set at right angles to the measurement surface.

Front axle hub
COMPONENTS ...

Removal
HINT: Replace the RH side using the same procedures as for the LH side. 1. REMOVE FRONT WHEEL 2. REMOVE FRONT AXLE HUB LH NUT (See page DS- 5) 3. SEPARATE SPEED SENSOR FRONT LH (See page DS-5) ...
