Toyota Sienna Service Manual: Rear door lock

INSPECTION

1. INSPECT REAR DOOR LOCK ACTUATOR ASSEMBLY LH

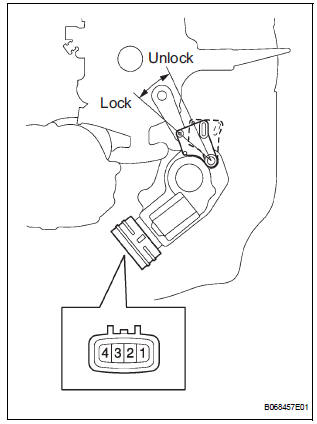

INSPECT REAR DOOR LOCK ACTUATOR ASSEMBLY LH

  1.  Apply battery voltage to the door lock and check operation of the motor.

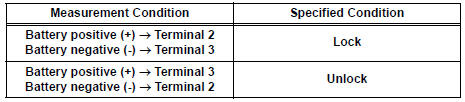

OK

OK

HINT: If the result is not as specified, replace the door lock assembly.

  1.  Measure the resistance according to the value(s) in the table below.

Standard resistance

Standard resistance

HINT: If the result is not as specified, replace the door lock assembly.

2. INSPECT REAR DOOR LOCK ACTUATOR ASSEMBLY RH

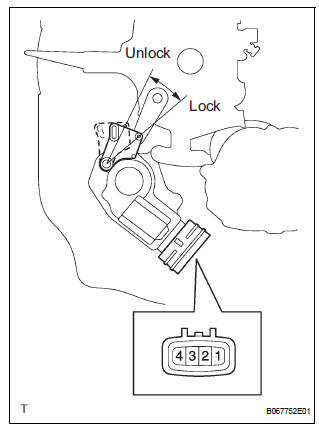

INSPECT REAR DOOR LOCK ACTUATOR ASSEMBLY RH

  1.  Apply battery voltage to the door lock and check operation of the motor.

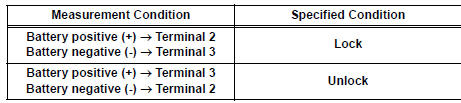

OK

OK

HINT: If the result is not as specified, replace the door lock assembly.

  1.  Measure the resistance according to the value(s) in the table below.

Standard resistance

Standard resistance

HINT: If the result is not as specified, replace the door lock assembly.
