Toyota Sienna Service Manual: Removal

1. REMOVE REAR WHEEL

2. REMOVE REAR SHOCK ABSORBER CAP LH

REMOVE REAR SHOCK ABSORBER CAP LH

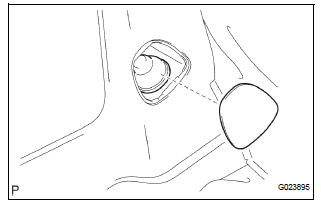

(a) Remove the shock absorber head cover.

(b) Remove the shock absorber cap LH.

3. REMOVE SHOCK ABSORBER ASSEMBLY REAR LH

REMOVE SHOCK ABSORBER ASSEMBLY REAR LH

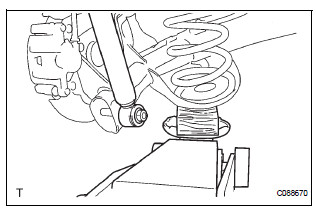

(a) Support the rear axle beam with a jack.

REMOVE SHOCK ABSORBER ASSEMBLY REAR LH

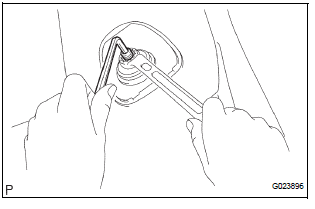

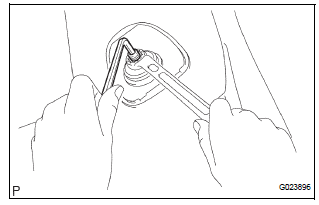

(b) Using a 6 mm hexagon wrench to hold the piston rod, remove the lock nut.

REMOVE SHOCK ABSORBER ASSEMBLY REAR LH

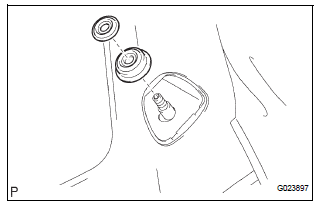

(c) Remove the rear shock absorber LH cushion retainer and rear shock absorber cushion No.1.

REMOVE SHOCK ABSORBER ASSEMBLY REAR LH

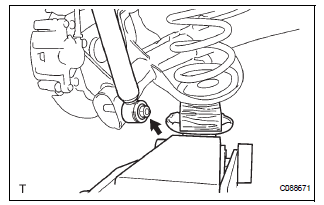

(d) Remove the nut, cushion retainer and shock absorber assembly rear LH.

REMOVE SHOCK ABSORBER ASSEMBLY REAR LH

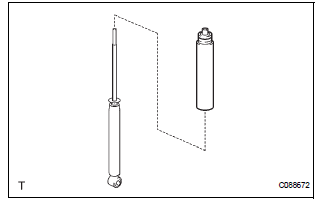

(e) Remove the rear spring bumper No.1 LH from the shock absorber assembly rear LH.

REMOVE SHOCK ABSORBER ASSEMBLY REAR LH

Rear shock absorber
COMPONENTS ...

Inspection
1. INSPECT SHOCK ABSORBER ASSEMBLY REAR LH (a) Push down and pull up the shock absorber rod, and check that there is no unusual resistance or unusual operation sound. If there is any malfunc ...
