Toyota Sienna 2010-2022 Owners Manual: Removing the second seats

Removing the second outside seats (Tip-up seats)

Toyota Sienna. Removing the second outside seats


  1. Pull the armrests up.

    Pull the seatback adjustment lever and fold down the seatback.

    The cushion will tip up.

Toyota Sienna. Removing the second outside seats


  1. Slide the seat forward to a lock position.
  2. Pull the release lever under the cushion and simultaneously lift the seat to remove.

Removing the second seats (Ottoman seats)

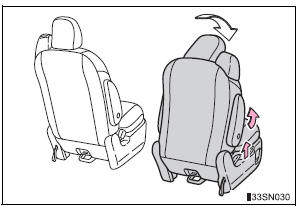

Toyota Sienna. Removing the second seats


  1. Pull the armrests up.

    Pull the seatback adjustment lever and fold down the seatback.

Toyota Sienna. Removing the second seats


  1. Slide the seat to a forward lock position.
  2. Pull the release lever behind the seatback straight back, then up. While moving the lever up, simultaneously lift the seat to remove.

Removing the second center seat (if equipped)

Toyota Sienna. Removing the second center seat


  1. Pull the lock release strap and fold down the second center seatback.

    Make sure that the head restraint is in the lowest position.

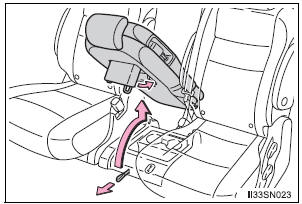

Toyota Sienna. Removing the second center seat


  1. Pull the lock release strap under the seat to remove the seat.

    Retract the cushion leg.

Toyota Sienna. Removing the second center seat


  1. Stow the seat in the storage box of the luggage room (cushion side first).

    Engage the stow latch buckle to hold the seat and tighten the latch strap.
