Toyota Sienna Service Manual: Road test
1. PROBLEM SYMPTOM CONFIRMATION
HINT:
The dynamic laser cruise control system has two cruise
control modes: the constant speed control mode and
vehicle-to-vehicle distance control mode.
- The vehicle-to-vehicle distance control mode is
always selected when starting up the dynamic laser
cruise control system.
- Operation of the constant speed control mode is the
same as that for a conventional cruise control system.

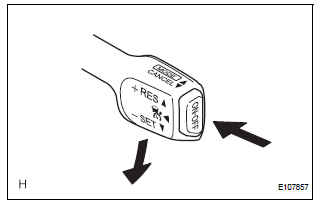

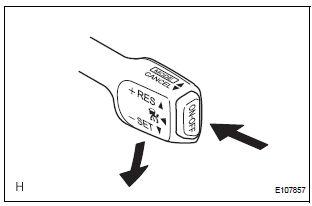

- Inspect the SET function.
- Turn the main switch on.
- Drive at the required speed (45 km/h (28 mph)
or higher).
- Push the cruise control main switch to -
(COAST)/SET.
- After releasing the switch, check that the vehicle
cruises at the set speed.

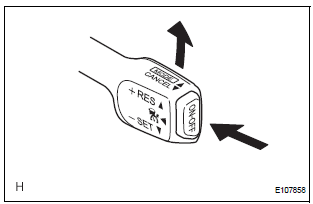

- Inspect the + (ACCEL) function.
- Turn the main switch on.
- Drive at the required speed (45 km/h (28 mph)
or higher).
- Push the cruise control main switch to -
(COAST)/SET.
- Check that vehicle speed increases while the
cruise control main switch is pushed to +
(ACCEL)/RES (RESUME), and that the vehicle
cruises at the newly set speed when the switch
is released.
- Push the cruise control main switch to +
(ACCEL)/RES (RESUME) and then release it
immediately. Check that vehicle speed
increases* (tap-up control).
HINT:
*: Constant speed control mode: increases by
1.6 km/h (1.0 mph); vehicle-to-vehicle distance
control mode: increases by 5 mph (for USA) or 5
km/h (for Canada).

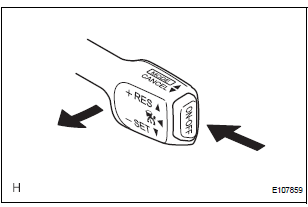

- Inspect the - (COAST) function.
- Turn the main switch on.
- Drive at the required speed (45 km/h (28 mph)
or higher).
- Push the cruise control main switch to -
(COAST)/SET.
- Check that vehicle speed decreases while the
cruise control main switch is pushed to -
(COAST)/SET, and that the vehicle cruises at
the newly set speed when the switch is released.
- Push the cruise control main switch to -
(COAST)/SET, and then release it immediately.
Check that vehicle speed decreases* (tap-down
control).
HINT:
*: Constant speed control mode: decreases by
1.6 km/h (1.0 mph); vehicle-to-vehicle distance
control mode: decreases by 5 mph (for USA) or
5 km/h (for Canada).

- Inspect the CANCEL function.
- Turn the main switch on.
- Drive at the required speed (45 km/h (28 mph)
or higher).
- Push the cruise control main switch to -
(COAST)/SET.
- When performing any one of the following,
check that the cruise control system is canceled
and that the normal driving mode is reset.
- Depressing the brake pedal
- Moving the shift lever from the D or 4 to the
N, 3, 2 or L position
- Turning the main switch off (the stored
vehicle speed in the ECM is not maintained.)
- Pulling the cruise control main switch to
CANCEL

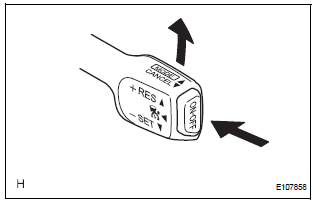

- Inspect the RES (RESUME) function.
- Turn the main switch on.
- Drive at the required speed (45 km/h (28 mph)
or higher).
- Push the cruise control main switch to -
(COAST)/SET.
- Cancel the cruise control system by performing
any of the above operations (other than turning
the main switch off).
- After pushing the cruise control main switch to +
(ACCEL)/RES (RESUME) at a driving speed of
more than 40 km/h (25 mph), check that the
vehicle resumes the speed set prior to the
cancellation.
HINT:
The stored vehicle speed is retained even if
vehicle speed drops below 40 km/h (25 mph)
once. The previously stored vehicle speed can
be resumed by pushing the cruise control main
switch to + (ACCEL)/RES (RESUME) when
vehicle speed returned to approximately 40 km/h
(25 mph) or more.
HINT:
Use the following procedures to troubleshoot the dynamic
laser cruise control system.
*: Use the intelligent tester
