DTC B0130/63 Short in Front Pretensioner Squib RH Circuit
DESCRIPTION
The front pretensioner squib RH circuit consists of the center airbag sensor assembly and the front seat outer belt assembly RH.
This circuit instructs the SRS to deploy when deployment conditions are met.
DTC B0130/63 is recorded when a short circuit is detected in the front pretensioner squib RH circuit
DTC No. |
DTC Detecting Condition |
Trouble Area |
B0130/63 |
|
|
WIRING DIAGRAM
INSPECTION PROCEDURE
HINT:
1 CHECK FRONT SEAT OUTER BELT ASSEMBLY RH (FRONT PRETENSIONER SQUIB RH)
CAUTION: Never connect a tester to the front seat outer belt assembly RH (front pretensioner squib RH) for measurement, as this may lead to a serious injury due to airbag deployment.
NOTICE: Do not forcibly insert the SST into the terminals of the connector when connecting.
Insert the SST straight into the terminals of the connector.
SST 09843-18060
OK: DTC B0130/63 is not output. HINT: Codes other than DTC B0130/63 may be output at this time, but they are not related to this check.
Go to step 2
REPLACE FRONT SEAT OUTER BELT ASSEMBLY RH
2 CHECK CONNECTORS
OK: The lock button is not disengaged, and the claw of the lock is not deformed or damaged.
REPAIR OR REPLACE FLOOR WIRE NO.2

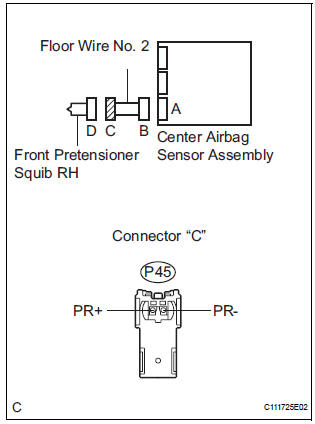

3 CHECK FLOOR WIRE NO.2 (FRONT PRETENSIONER SQUIB RH CIRCUIT)
Standard resistance
REPAIR OR REPLACE FLOOR WIRE NO.2

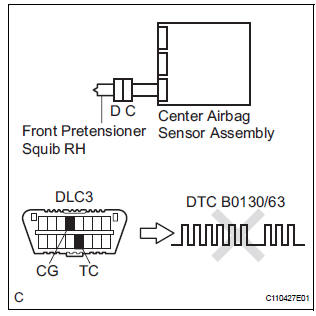

4 CHECK CENTER AIRBAG SENSOR ASSEMBLY
OK: DTC B0130/63 is not output. HINT: Codes other than code B0130/63 may be output at this time, but they are not related to this check.
REPLACE CENTER AIRBAG SENSOR ASSEMBLY
USE SIMULATION METHOD TO CHECK
