Toyota Sienna Service Manual: Standard bolt

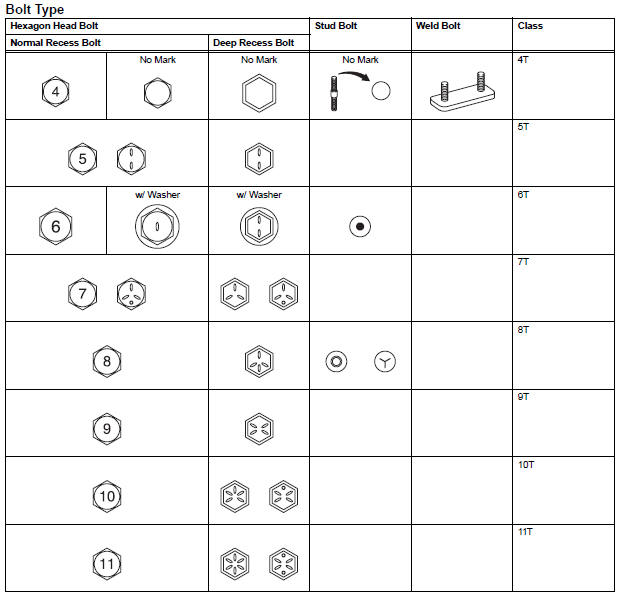

HOW TO DETERMINE BOLT STRENGTH

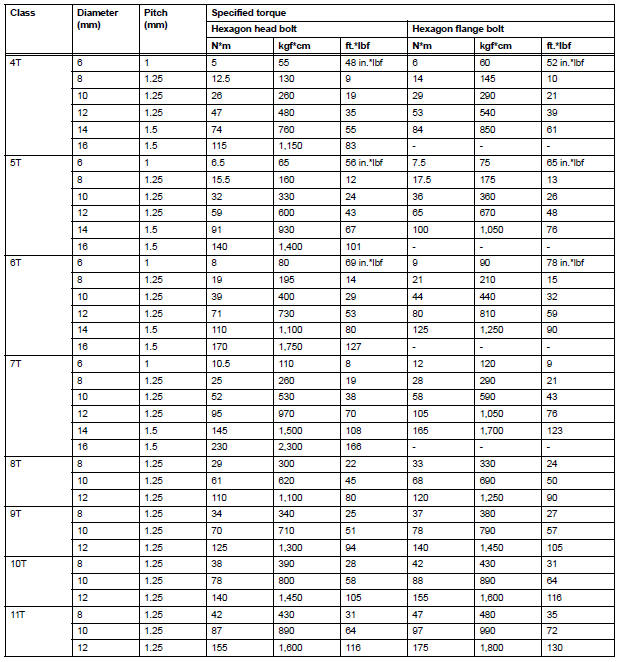

SPECIFIED TORQUE FOR STANDARD BOLTS

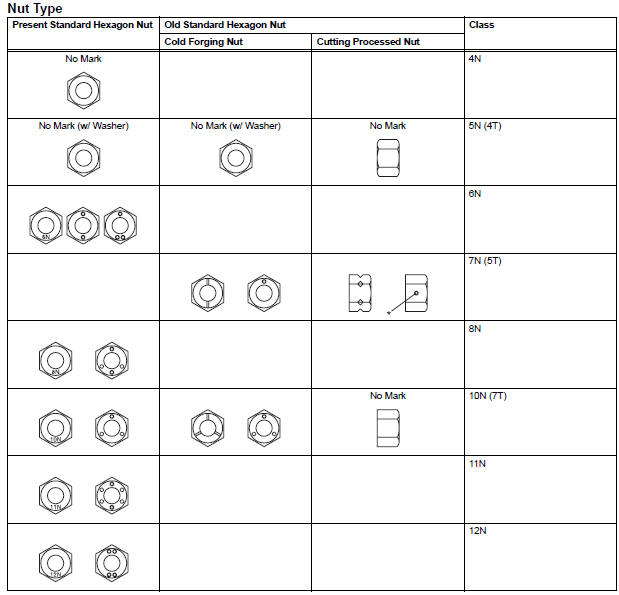

HOW TO DETERMINE NUT STRENGTH
HINT:
- *: Nut with 1 or more marks on one side surface of the nut.
- Use a nut with the same nut strength classification number (or greater) as the bolt strength classification number when tightening parts with a bolt and nut.
Example:
- Bolt = 4T
- Nut = 4N or more
2GR-FE ENGINE CONTROL SYSTEM

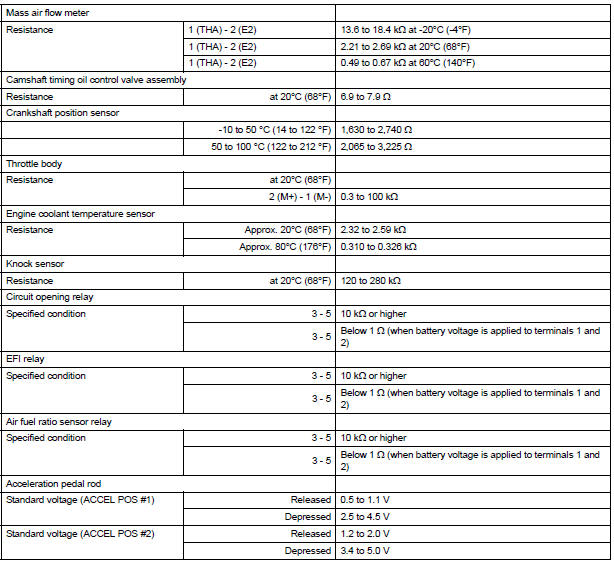

SERVICE DATA

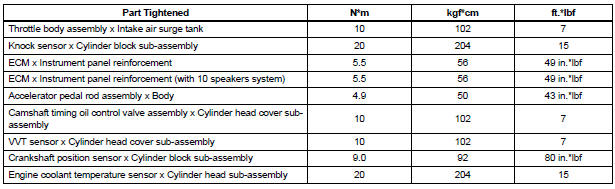

TORQUE SPECIFICATIONS
2Gr-fe engine mechanical
SERVICE DATA
TORQUE SPECIFICATIONS
2GR-FE FUEL
SERVICE DATA
TORQUE SPECIFICATIONS
2GR-FE EMISSION CONTROL
SERVICE DATA
TORQUE SPECIFICATIONS
