Toyota Sienna Service Manual: Starter relay

On-vehicle inspection

1. Inspect starter relay

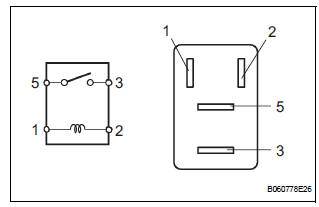

 Inspect starter relay

(a) Using an ohmmeter, measure the resistance between each terminal.

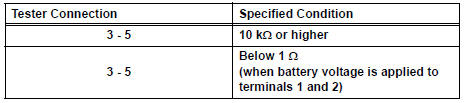

Standard resistance

If the result is not as specified, replace the starter relay assembly.
