Toyota Sienna 2010-2026 Owners Manual: Taking out the jack and tools

Toyota Sienna. Taking out the jack and tools

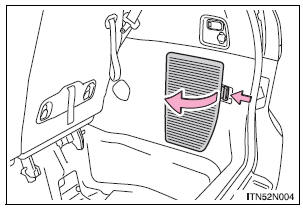

  1. Remove the cover.

Toyota Sienna. Taking out the jack and tools

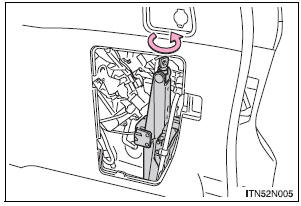

  1. Remove the adapter socket.

Toyota Sienna. Taking out the jack and tools

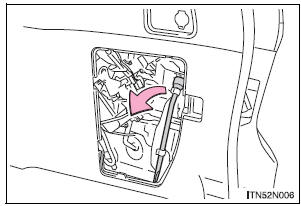

  1. Remove the jack.

Toyota Sienna. Taking out the jack and tools

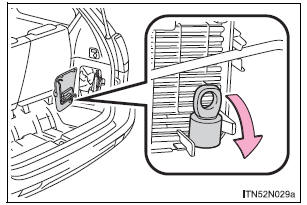

  1. Remove the wheel nut wrench.
Location of the spare tire, jack and tools
Spare tire Jack handle Tire bag Jack Wheel nut wrench Adapter socket Tire strap WARNINGUsing the tire jack Observe the following precautions. Improper use of the t ...

Taking out the spare tire
Slide the front passenger’s seat to the frontmost lock position and the right side second seat to the rearmost lock position so they will not interfere with the jack handle. Open the ri ...
