Toyota Sienna Service Manual: Terminals of ECU

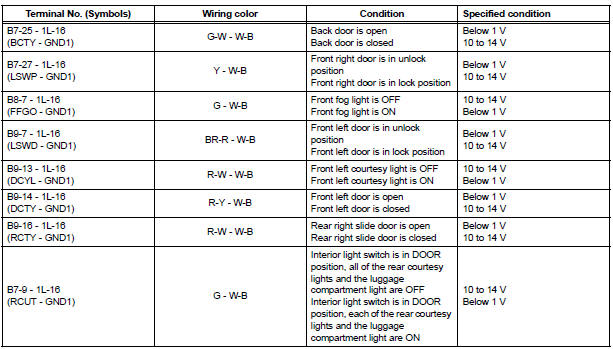

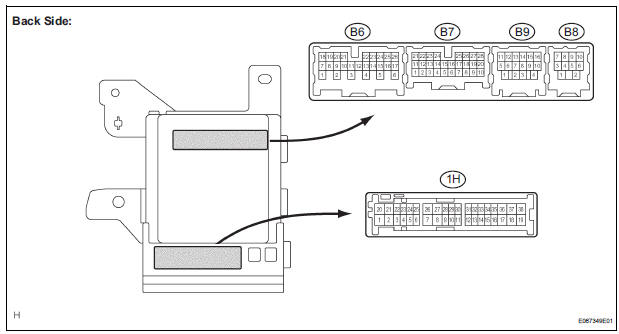

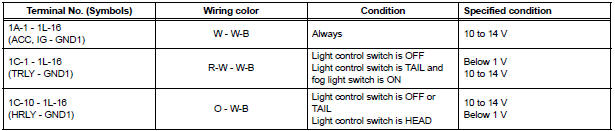

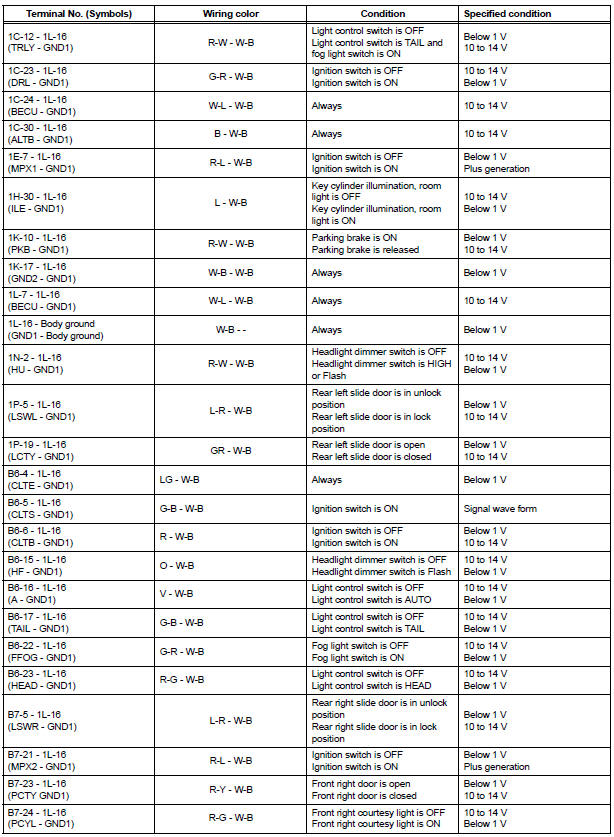

1. Instrument Panel Junction Block Assembly

Instrument Panel Junction Block Assembly

Instrument Panel Junction Block Assembly

Instrument Panel Junction Block Assembly

Instrument Panel Junction Block Assembly

Instrument Panel Junction Block Assembly
