A recommended tongue weight varies in accordance with the types of trailers or towing as described below.
To ensure the recommended values shown below, the trailer must be loaded by referring to the following instructions.

Tongue Weight

The gross trailer weight should be distributed so that the tongue weight is 9% to 11%.

(Tongue weight / Gross trailer weight x 100 = 9% to 11%)

Toyota Sienna. Trailer Tongue Weight

Gross trailer weight
Tongue weight

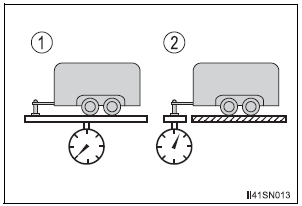

The gross trailer weight, gross axle weight and tongue weight can be measured with platform scales found at a highway weighing station, building supply company, trucking company, junk yard, etc.

GCWR, TWR and Unbraked TWR

Confirm that the gross trailer weight, gross combination weight, gross vehicle weight, gross axle weight and tongue weight are all within the limits. GCWR* 2WD models: 8900 lb. (4037 kg) AWD mode ...

Hitch

Trailer hitch assemblies have different weight capacities. Toyota recommends the use of Toyota hitch/bracket for your vehicle. For details, contact your Toyota dealer. If you wish to install a t ...
