Toyota Sienna Service Manual: Unlock warning switch

Toyota Sienna Service Manual / Door lock / Unlock warning switch

INSPECTION

1. INSPECT UNLOCK WARNING SWITCH ASSEMBLY

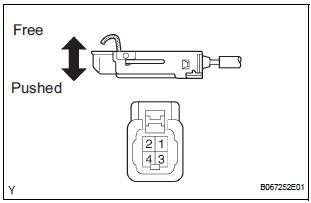

INSPECT UNLOCK WARNING SWITCH ASSEMBLY

  1.  Remove the unlock warning switch assembly .
  2.  Measure the resistance according to the value(s) in the table below.

Standard resistance

Standard resistance

Door control switch
INSPECTION 1. INSPECT DOOR CONTROL SWITCH ASSEMBLY  Measure the resistance according to the value(s) in the table below. Standard resistance HINT: If the result is not as spec ...

Front door lock
INSPECTION 1. INSPECT FRONT DOOR W/ MOTOR LOCK ASSEMBLY LH  Apply battery voltage to the door lock and check operation of the motor. OK HINT: If the result is not as specified, ...
