Toyota Sienna Service Manual: Washer Signal Circuit

DESCRIPTION

The distance control ECU detects washer operation. The cruise control will be cancelled by the distance control ECU if the windshield wipers operate in the HI or LO mode. By detecting washer operation, the distance control ECU allows the cruise control to continue even when the windshield wipers operate in the HI or LO mode.

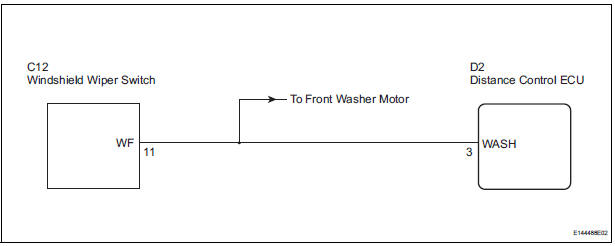

WIRING DIAGRAM

WIRING DIAGRAM

INSPECTION PROCEDURE

1 INSPECT WASHER SYSTEM

  1. Check that the front washer operates.

OK: Washer function is normal.

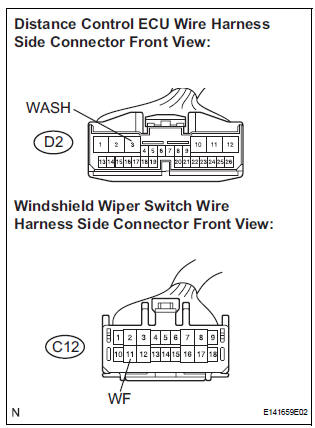

2 CHECK HARNESS AND CONNECTOR (DISTANCE CONTROL ECU - WINDSHIELD WIPER SWITCH)

CHECK HARNESS AND CONNECTOR (DISTANCE CONTROL ECU - WINDSHIELD WIPER SWITCH)

  1. Disconnect the D2 distance control ECU connector and C12 windshield wiper switch connector.
  2.  Measure the resistance according to the value(s) in the table below.

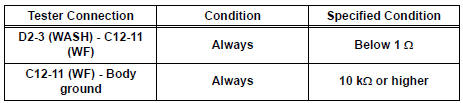

Standard resistance

Standard resistance

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
