Toyota Sienna 2010-2019 Owners Manual: Adjusting the height of rear view mirror

Toyota Sienna. Adjusting the height of rear view mirror


The height of the rear view mirror can be adjusted to suit your driving posture.

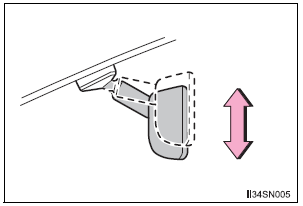

Adjust the height of the rear view mirror by moving it up and down.

Inside rear view mirror
The rear view mirror’s position can be adjusted to enable sufficient confirmation of the rear view. ...

Anti-glare function
Manual anti-glare inside rear view mirror Reflected light from the headlights of vehicles behind can be reduced by operating the lever. Normal position Anti-glare position Auto ...
