Toyota Sienna Service Manual: Blower unit

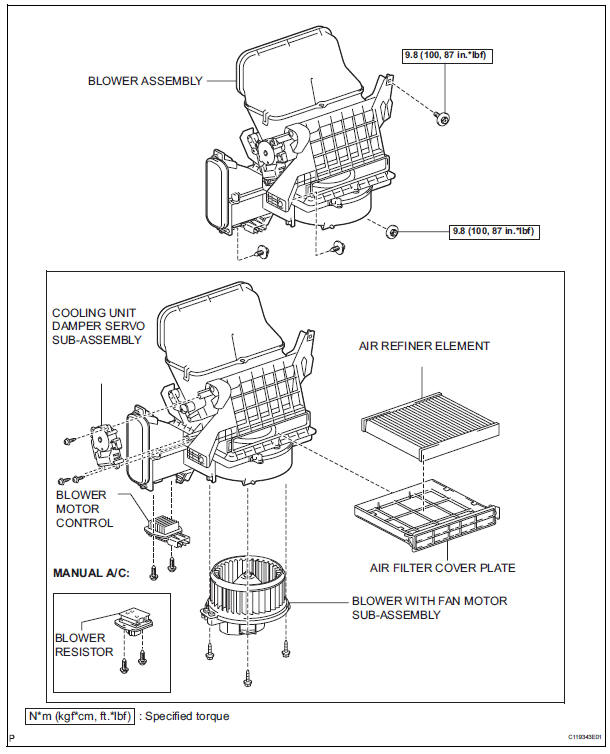

COMPONENTS

Blower unit

Installation
1. TEMPORARILY TIGHTEN AIR CONDITIONING UNIT ASSEMBLY (a) Engage the 2 claws. (b) Temporarily tighten the air conditioning unit assembly with the nut. Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf ...

Removal
1. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY WITH PASSENGER AIRBAG ASSEMBLY HINT: Refer to the instructions for removal of the instrument panel sub-assembly w/ passenger airbag assembly (See page IP-5) ...
