Toyota Sienna Service Manual: Condenser

COMPONENTS

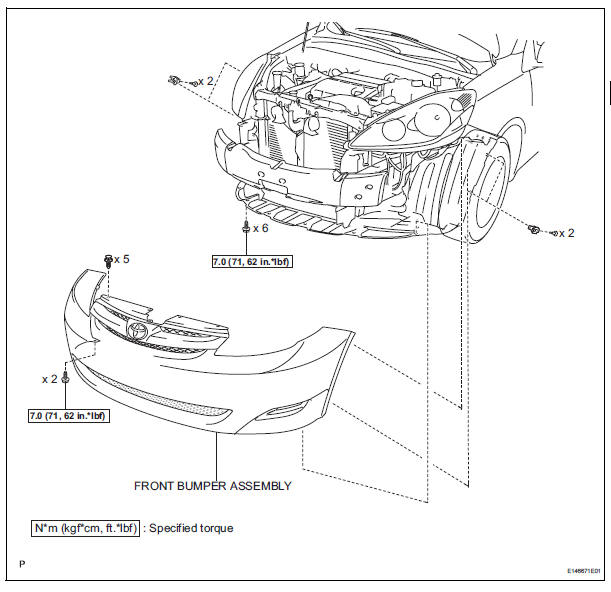

Condenser

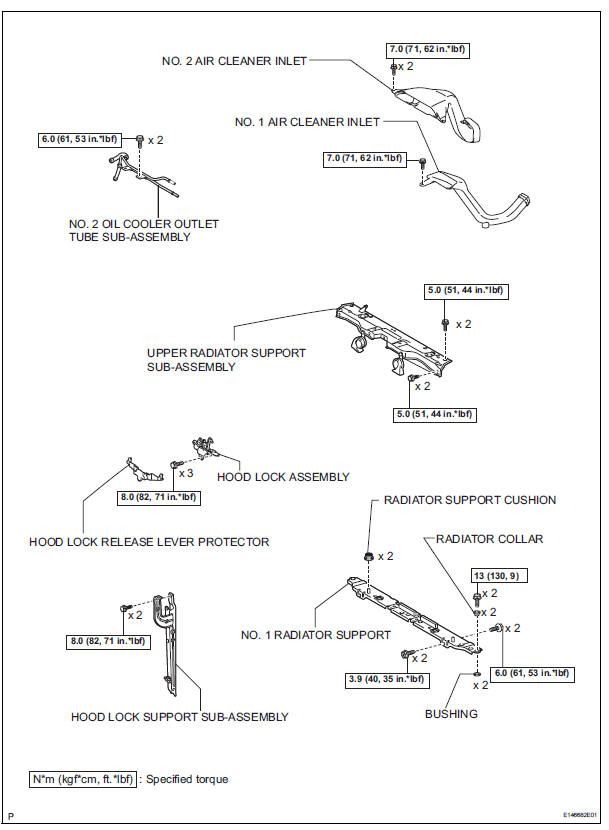

Condenser

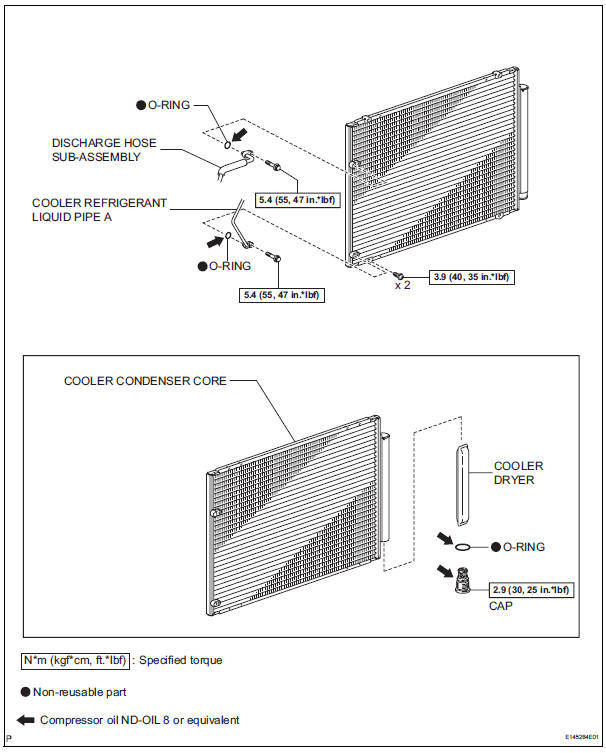

Condenser

Installation
1. INSTALL COMPRESSOR AND MAGNETIC CLUTCH (a) Using a "TORX" socket wrench (E8), install the compressor and magnetic clutch with the 2 stud bolts. Torque: 10 N*m (102 kgf*cm, 7.4 ft. ...

On-vehicle inspection
1. INSPECT COOLER CONDENSER CORE (a) If the fin of the cooler condenser core is dirty, clean it with water and dry it with compressed air. NOTICE: Do not damage the fin of the cooler condenser co ...
