Toyota Sienna Service Manual: DTC check / clear

1. CHECK DTC

CHECK DTC

  1. Prepare the intelligent tester.

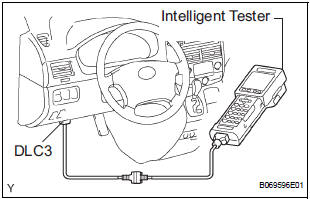

  2. Connect the intelligent tester to DLC3.
  3. Turn the ignition switch to the ON position and turn the intelligent tester main switch ON.
  4. Use the intelligent tester to check the DTCs, and note them down (For operating instructions, see the intelligent tester's instruction book.).
  5. Refer to DIAGNOSTIC TROUBLE CODE CHART to confirm the details of the DTCs.

2. CLEAR DTC

  1. DTC will be cleared when the malfunction output to DTC is recovered normally.
Terminals of ECU
1. MULTIPLEX NETWORK GATEWAY ECU Disconnect the G4 ECU connector. Measure the voltage between the specified terminals on the wire harness side connector. If the result is not as ...

Diagnostic trouble code chart
If a malfunction code is displayed during the DTC check, check the circuit listed for that code in the chart below (Proceed to the page given for that circuit). MULTIPLEX COMMUNICATION SYSTEM ...
