Toyota Sienna Service Manual / Air conditioning / Blower motor / For rear air conditioning system)

ON-VEHICLE INSPECTION

1. INSPECT COOLING UNIT MOTOR SUB-ASSEMBLY WITH FAN

For rear air conditioning system)

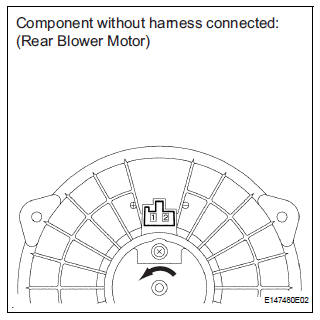

(a) Connect the positive (+) lead from the battery to terminal 1 and negative (-) to terminal 2, then check that the motor operates smoothly.

If operation is not as specified, replace the rear blower motor.

Blower motor
On-vehicle inspection 1. INSPECT BLOWER WITH FAN MOTOR SUBASSEMBLY (a) Connect the positive (+) lead from the battery to terminal 2 and negative (-) to terminal 1, then check that the motor op ...

For manual air conditioning system
ON-VEHICLE INSPECTION 1. INSPECT BLOWER RESISTOR (for Manual Air Conditioning System) (a) Measure resistance between terminals, as shown in the table. If resistance is not as specified, replac ...
