Toyota Sienna Service Manual: Blower motor

On-vehicle inspection

1. INSPECT BLOWER WITH FAN MOTOR SUBASSEMBLY

INSPECT BLOWER WITH FAN MOTOR SUBASSEMBLY

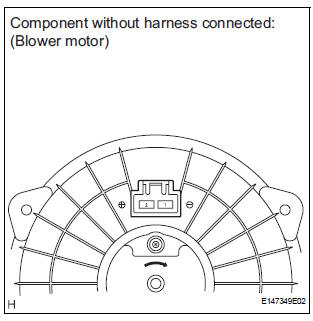

(a) Connect the positive (+) lead from the battery to terminal 2 and negative (-) to terminal 1, then check that the motor operates smoothly.

If operation is not as specified, replace the blower motor.

Installation
1. INSTALL AIR CONDITIONING BLOWER ASSEMBLY (a) Install the air conditioning blower assembly with the 3 bolts. Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf) NOTICE: Tighten the bolts in the order s ...

For rear air conditioning system)
ON-VEHICLE INSPECTION 1. INSPECT COOLING UNIT MOTOR SUB-ASSEMBLY WITH FAN (a) Connect the positive (+) lead from the battery to terminal 1 and negative (-) to terminal 2, then check that the m ...
