Toyota Sienna Service Manual: Front airbag sensor

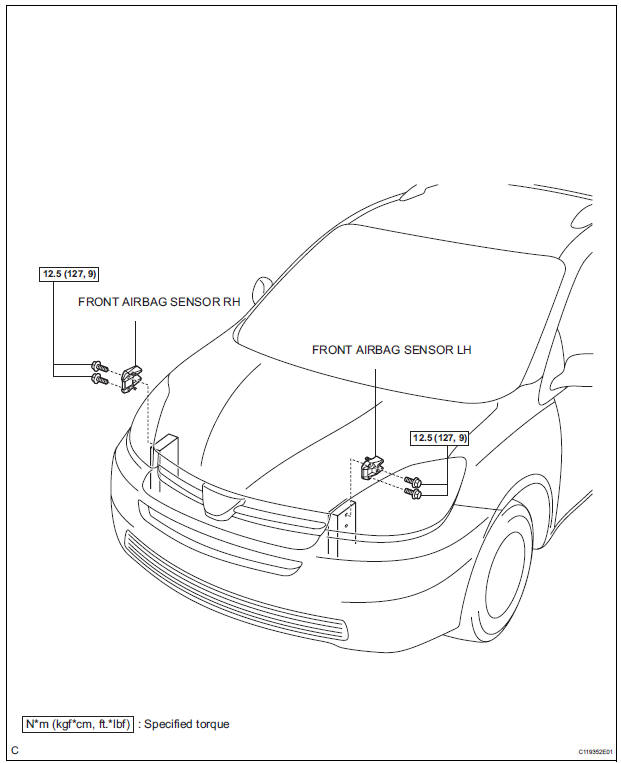

COMPONENTS

COMPONENTS

Installation
1. INSTALL CENTER AIRBAG SENSOR ASSEMBLY Check that the ignition switch is off. Check that the battery negative (-) terminal is disconnected. CAUTION: After disconnecting the negativ ...

On-vehicle inspection
1. INSPECT FRONT AIRBAG SENSOR (VEHICLE NOT INVOLVED IN COLLISION)  Perform a diagnostic system check. 2. INSPECT FRONT AIRBAG SENSOR (VEHICLE INVOLVED IN COLLISION AND AIRBAG HAS NOT D ...
