Toyota Sienna Service Manual: Installation

1. INSTALL FRONT SEAT ASSEMBLY LH

INSTALL FRONT SEAT ASSEMBLY LH

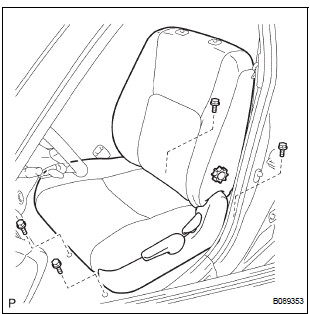

  1.  Place the seat assembly in the cabin.

    NOTICE: Be careful not to damage the body.

  2.  Connect the connectors under the seat assembly.
  3.  Tighten the 2 bolts on the front side of the seat assembly.

    Torque: 37 N*m (375 kgf*cm, 27 ft.*lbf)

  4.  Tighten the 2 bolts on the rear side of the seat assembly.

    Torque: 37 N*m (375 kgf*cm, 27 ft.*lbf)

  5.  Install the 2 seat track covers.

2. INSTALL FRONT SEAT HEADREST ASSEMBLY

3. CHECK SRS WARNING LIGHT

4. CHECK SEAT SLIDE ADJUSTER LOCKS

5. INITIALIZE OCCUPANT CLASSIFICATION SYSTEM
