Toyota Sienna 2010-2019 Owners Manual: Opening and closing procedures

The power windows can be opened and closed using the switches.

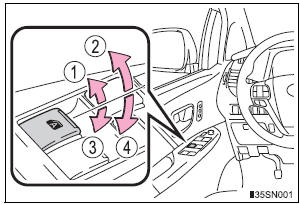

Operating the switch moves the windows as follows:

Toyota Sienna. Opening and closing procedures


  1. Closing
  2. One-touch closing*
  3. Opening
  4. One-touch opening*

*: To stop the window partway, operate the switch in the opposite direction.

Power windows
...

Window lock switch
Press the switch down to lock the passenger window switches. Use this switch to prevent children from accidentally opening or closing a passenger window. The power windows can be operated w ...
