Toyota Sienna 2010-2020 Owners Manual: Power easy access system

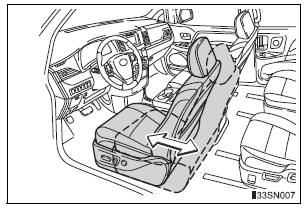

The seat is automatically adjusted to allow the driver to enter and exit the vehicle easily.
When all of the following have been performed, the driver’s seat is automatically adjusted to a position that allows driver to enter and exit the vehicle easily.
- The shift lever has been shifted to P
- The engine switch has been turned off.
- The driver’s seat belt has been unfastened When any of the following has been performed, the driver’s seat will automatically return to their original positions.
- The engine switch has been turned to ACCESSORY mode.
- The driver’s seat belt has been fastened
Operation of the power easy access system
When exiting the vehicle, the power easy access system may not operate if the seat is already close to the rearmost position, etc.
