Toyota Sienna Service Manual: Problem symptoms table

Use the table below to find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts.

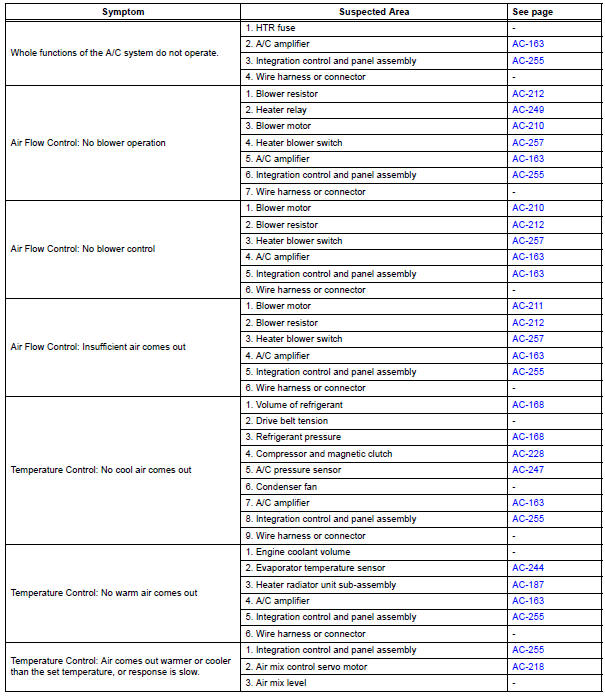

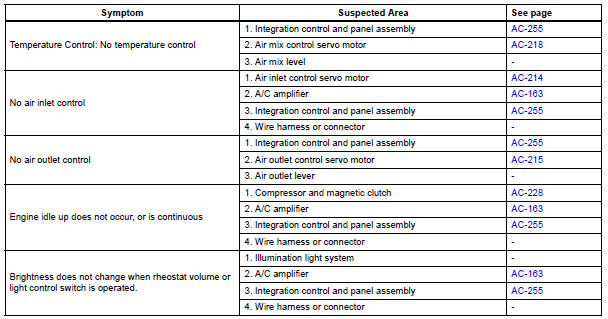

Front A/C:

Front A/C

Front A/C

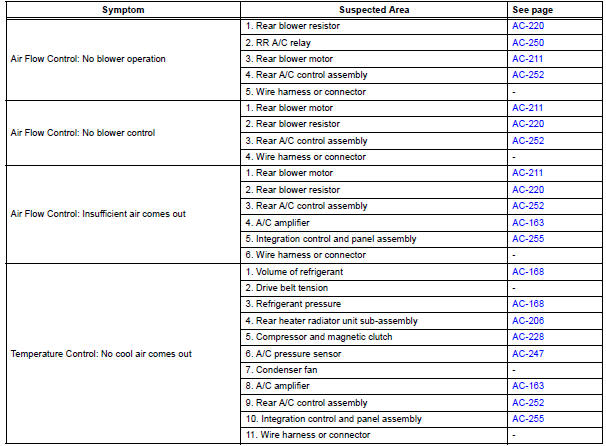

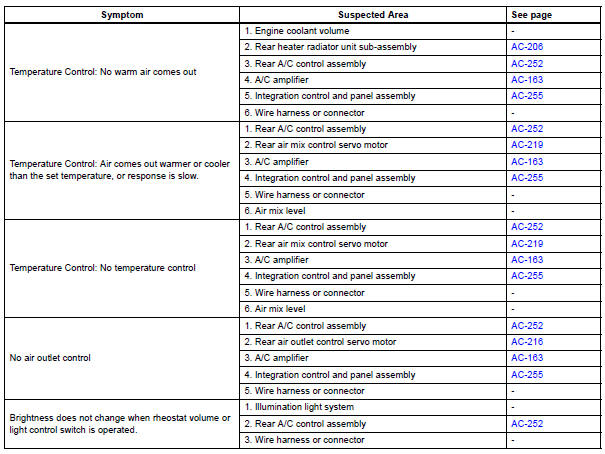

Rear A/C:

Rear A/C

Rear A/C

Parts location
...

Terminals of ecu
1. A/C AMPLIFIER HINT: Check from the rear of the connector while it is connected to the A/C amplifier. (a) Waveform 1: (b) Waveform 2: ...
