Toyota Sienna Service Manual: Parts location

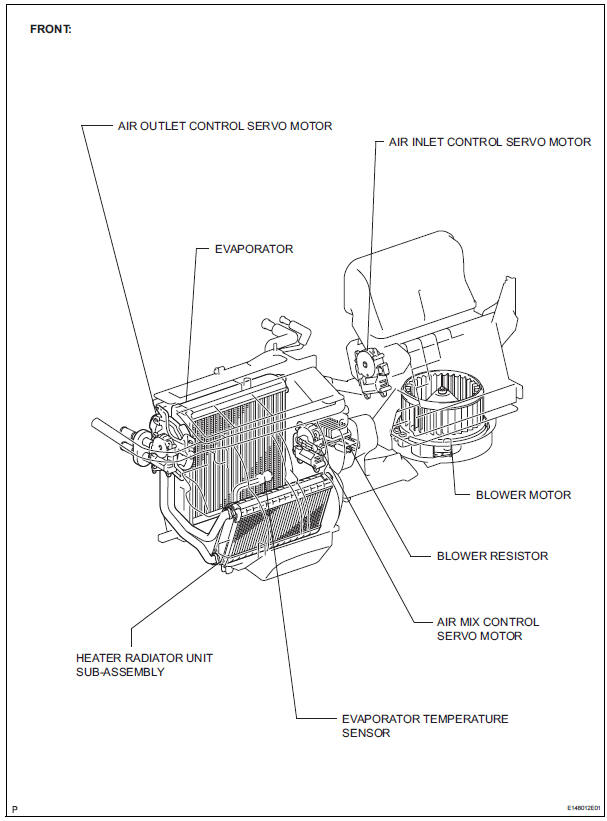

Parts location

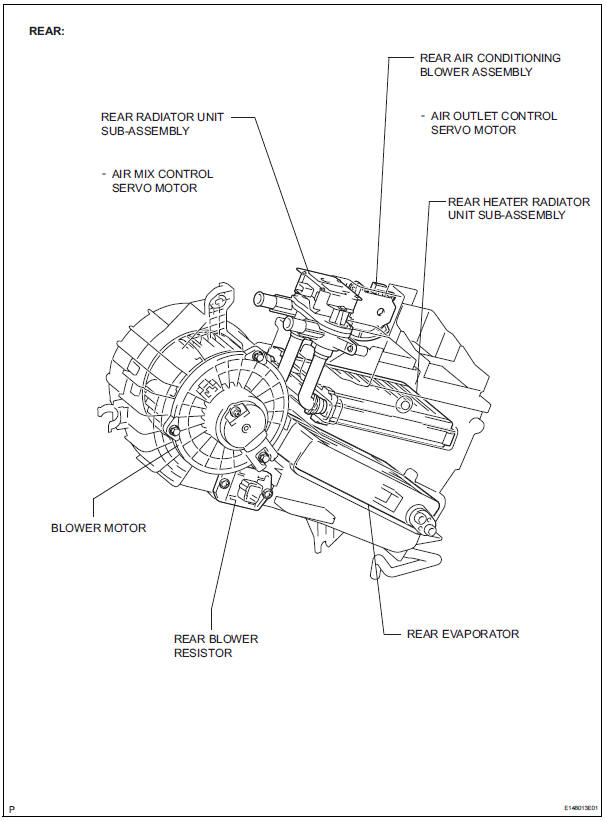

Parts location

Parts location

Precaution
NOTICE: Because the compressor operates at high voltages, wear electric insulated gloves and pull out the service plug to cut the high-voltage circuit before inspection. 1. DO NOT HANDLE REFRIGERA ...

Problem symptoms table
Use the table below to find the cause of the problem. The numbers indicate the priority of the likely cause of the problem. Check each part in order. If necessary, replace these parts. Front A/C: ...

Other materials:

Inspection
1. INSPECT LOWER BALL JOINT ASSEMBLY FRONT LH (a) As shown in the illustration, flip the ball joint stud back and forth 5 times, before installing the nut. (b) Using a torque wrench, turn the nut continuously at a rate of 3 - 5 seconds per 1 turn and take the torque reading on the 5th tur ...

Adjustment
1. REMOVE REAR WHEEL 2. ADJUST PARKING BRAKE SHOE CLEARANCE (See page PB-18) 3. INSTALL REAR WHEEL Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf) 4. INSPECT PARKING BRAKE PEDAL TRAVEL (a) Slowly depress the parking brake pedal all the way, and count the number of clicks. Parking brake pedal trav ...

Short in Rear Curtain Shield Squib LH Circuit
DTC B1635/87 Short in Rear Curtain Shield Squib LH Circuit DESCRIPTION The rear curtain shield squib LH circuit consists of the center airbag sensor assembly and the curtain shield airbag assembly LH. The circuit instructs the SRS to deploy when deployment conditions are met. DTC B1635/87 ...
