Toyota Sienna 2010-2024 Owners Manual: Quarter windows

Toyota Sienna 2010-2024 Owners Manual / Operation of each component / Opening, closing the windows and moon roof / Quarter windows

The quarter windows can be opened to bring in fresh outside air for additional ventilation.

Opening and closing procedures

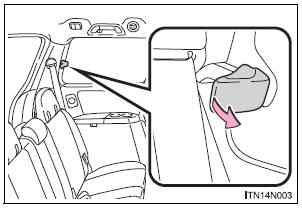

Manual type

Toyota Sienna. Opening and closing procedures

Pull the handle and swing the window fully out to open.

Power type

Toyota Sienna. Opening and closing procedures

Opening
Closing

Both the left and right quarter windows move.

The windows can be operated when (power type)

The engine switch is in the “ON” position (vehicles without a smart key system) or IGNITION ON mode (vehicles with a smart key system).

Operating the windows after turning the engine off (power type)

Vehicles without a smart key system The power type windows can be operated for approximately 45 seconds even after the engine switch is turned to the “ACC” or “LOCK” position. They cannot, however, be operated once either front door is opened.
Vehicles with a smart key system The power type windows can be operated for approximately 45 seconds even after the engine switch is turned to ACCESSORY mode or turned off. They cannot, however, be operated once either front door is opened

WARNING

Closing the windows

Observe the following precautions.

Failing to do so may result in death or serious injury.

Check to make sure that all passengers do not have any part of their body in a position where it could be caught when a window is being operated.
Power type: Do not allow children to operate the quarter windows.
