Toyota Sienna Service Manual: Rear axle hub and bearing (for 2wd)

Toyota Sienna Service Manual / Axle / Rear axle hub and bearing (for 2wd)

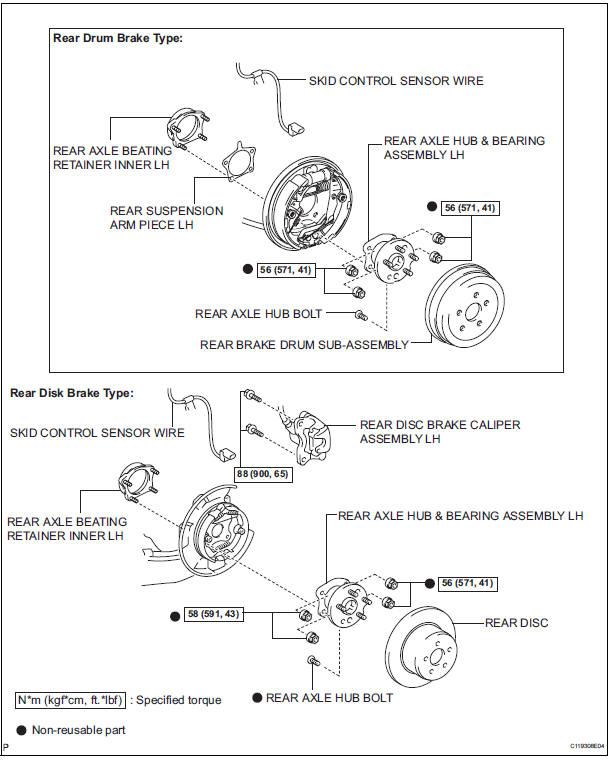

COMPONENTS

Rear axle hub and bearing (for 2wd)

Rear axle hub bolt
COMPONENTS Replacement HINT: Replace the RH side using the same procedures as for the LH side. 1. REMOVE REAR WHEEL 2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY LH (a) Separate rear di ...

On-vehicle inspection
1. INSPECT REAR AXLE HUB BEARING BACKLASH (a) Using a dial gauge, check for backlash near the center of the axle hub. Maximum: 0.05 mm (0.0020 in.) If backlash exceeds the maximum, replace th ...
