Toyota Sienna Service Manual / Seat belt / Rear center seat inner belt assembly

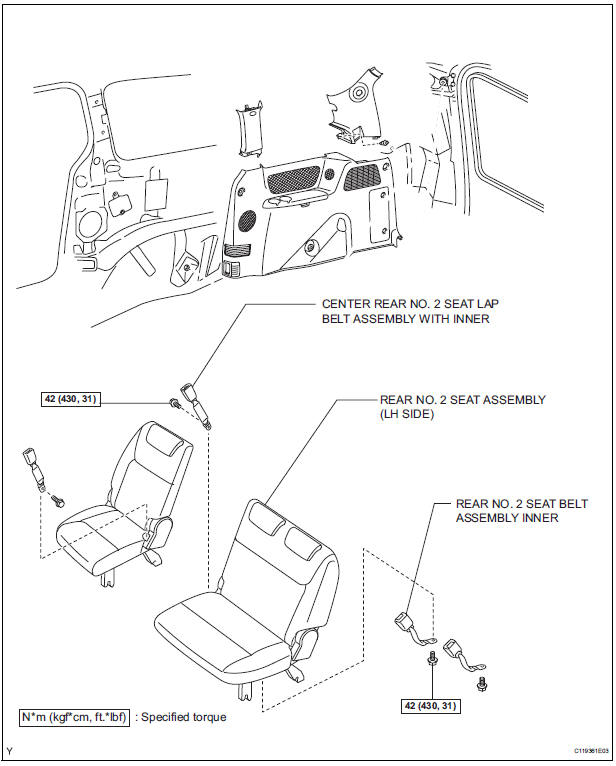

COMPONENTS

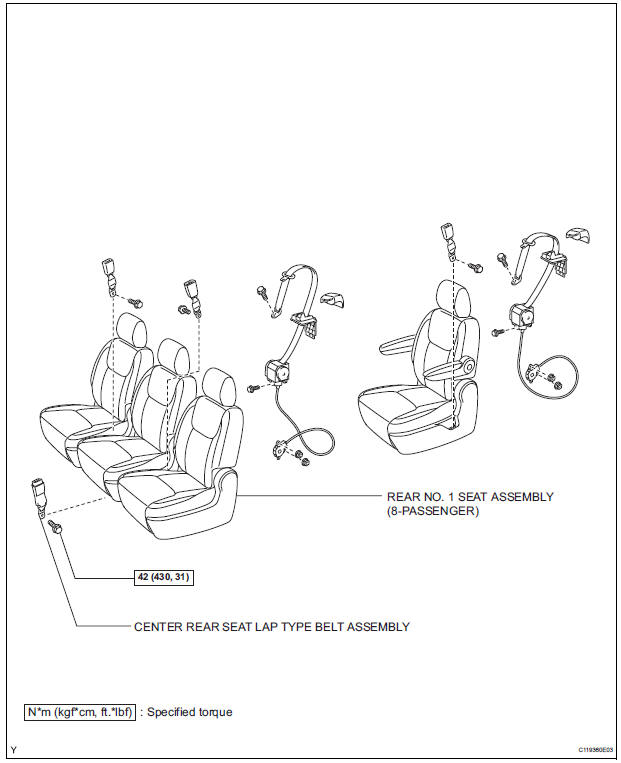

COMPONENTS

COMPONENTS

Installation
1. INSTALL NO. 2 REAR SEAT OUTER BELT ASSEMBLY NOTICE: Do not disassemble the retractor.  Check the degree of tilt when the No. 2 rear seat outer belt assembly begins to lock the ELR. ...

Removal
1. REMOVE CENTER REAR SEAT LAP TYPE BELT ASSEMBLY (for 8-Passenger) HINT: Refer to the instructions for disassembly of the rear No. 1 seat assembly (for center seat).  Remove the bolt an ...

Other materials:

Short to B+ in Front Passenger Side Squib Circuit
DTC B0108/52 Short to B+ in Front Passenger Side Squib Circuit DESCRIPTION The front passenger side squib circuit consists of the center airbag sensor assembly and the front passenger airbag assembly. The circuit instructs the SRS to deploy when deployment conditions are met. DTC B0108/52 ...

Evaporative Emission Control System Incorrect Purge Flow
DTC SUMMARY DESCRIPTION The circuit description can be found in the EVAP (Evaporative Emission) System (See page ES-409). INSPECTION PROCEDURE Refer to the EVAP System (See page ES-412). MONITOR DESCRIPTION The two monitors, Key-Off and Purge Flow, are used to detect malfunctions relat ...

Removal
1. REMOVE BACK DOOR GARNISH CENTER 2. REMOVE BACK DOOR SIDE GARNISH LH 3. REMOVE BACK DOOR SIDE GARNISH RH 4. REMOVE BACK DOOR STRAP COVER 5. REMOVE BACK DOOR PULL STRAP 6. REMOVE BACK DOOR TRIM BOARD ASSEMBLY 7. REMOVE BACK DOOR SERVICE HOLE PLATE 8. REMOVE REAR SPOILER COVER (W/ REAR SPOIL ...
