Toyota Sienna Service Manual: Replacement

1. REPLACE GENERATOR DRIVE END FRAME BEARING

REPLACE GENERATOR DRIVE END FRAME BEARING

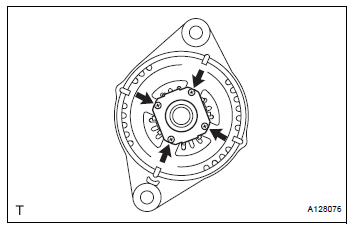

(a) Remove the 4 screws and retainer plate from the drive end frame.

 REPLACE GENERATOR DRIVE END FRAME BEARING

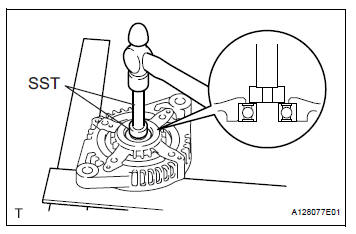

(b) Using SST and a hammer, tap out the drive end frame bearing from the drive end frame.

SST 09950-60010 (09951-00250), 09950-70010 (09951-07100)

REPLACE GENERATOR DRIVE END FRAME BEARING

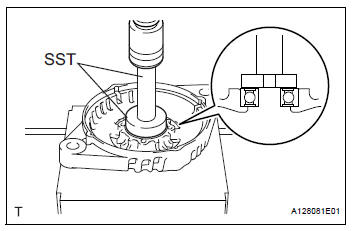

(c) Using SST and a press, press in a new generator drive end frame bearing.

SST 09950-60010 (09951-00470), 09950-70010 (09951-07100)

REPLACE GENERATOR DRIVE END FRAME BEARING

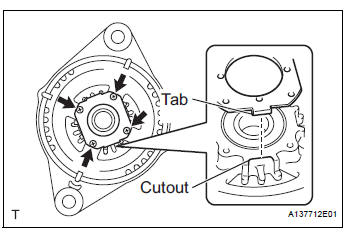

(d) Fit the tabs on the retainer plate into the cutouts on the drive end frame to install the retainer plate.

(e) Install the 4 screws.

Torque: 2.3 N*m (23 kgf*cm, 20 in.*lbf)

Inspection
1. Inspect generator clutch pulley (a) Hold the center of the pulley, and confirm that the outer ring turns counterclockwise and does not turn clockwise. If the result is not as specified, r ...

Reassembly
1. INSTALL GENERATOR ROTOR ASSEMBLY (a) Place the drive end frame on the clutch pulley. (b) Install the generator rotor assembly to the drive end frame. (c) Place a new generator washer ...
