Toyota Sienna Service Manual: Steering angle sensor

Toyota Sienna Service Manual / Brake control / Steering angle sensor

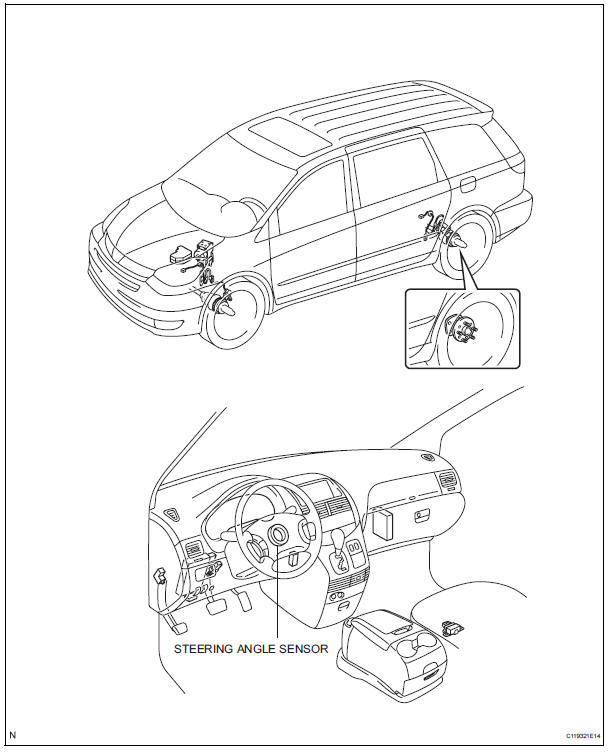

COMPONENTS

Steering angle sensor

Removal
1. PRECAUTION HINT: See page RS-1 2. SEPARATE BATTERY NEGATIVE TERMINAL 3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD 4. REMOVE HORN BUTTON ASSEMBLY (See page RS- 424) 5. REMOVE STEERING WHEEL AS ...
