Toyota Sienna Service Manual: Steering pad switch

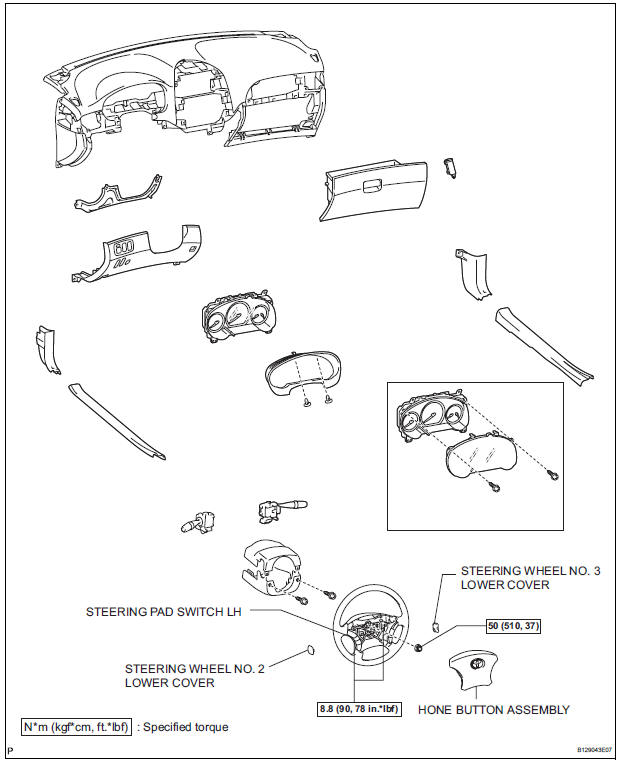

COMPONENTS

COMPONENTS

Audio terminal
COMPONENTS REMOVAL 1. REMOVE INSTRUMENT CLUSTER CENTER NO. 2 FINISH PANEL  Using a moulding remover, disengage the 3 clips.  Disconnect the connector and remove the instrumen ...

Removal
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL 2. REMOVE STEERING WHEEL NO. 2 LOWER COVER 3. REMOVE STEERING WHEEL NO. 3 LOWER COVER 4. REMOVE HONE BUTTON ASSEMBLY 5. REMOVE STEERING PAD SWITC ...
