Toyota Sienna Service Manual: Stereo Component Amplifier Power Source Circuit

DESCRIPTION

This circuit provides power to the stereo component amplifier.

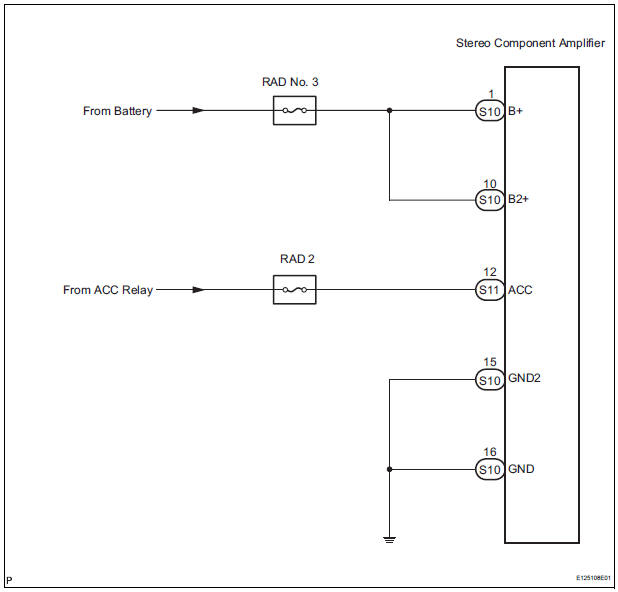

WIRING DIAGRAM

WIRING DIAGRAM

INSPECTION PROCEDURE

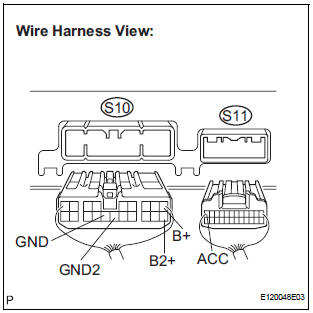

1 INSPECT STEREO COMPONENT AMPLIFIER

INSPECT STEREO COMPONENT AMPLIFIER

  1. Disconnect the stereo component amplifier connectors.
  2. Measure the resistance according to the values in the table below.

Standard resistance

Standard resistance

  1. Measure the voltage according to the values in the table below.

Standard voltage

Standard voltage

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
