Toyota Sienna 2010-2022 Owners Manual: Personal/interior light main switch

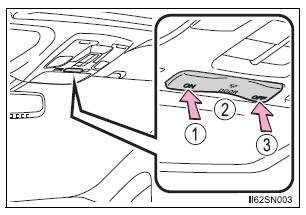

- Turns the lights on
- Turns the door position on
- Turns the lights off
Interior lights list
Rear personal/interior lights
Rear ceiling lights (if equipped)
Front personal/interior lights
Engine switch light
Front door courtesy lights (if equipped)
Outer foot lights (if eq ...
Personal/interior
lights
Front
Turns the light on/off
Rear
Turns the light on/off
When the personal/interior light main switch is in the off position, the
rear personal lights will not turn on even if the switch is o ...
