Toyota Sienna Service Manual: For vehicles equipped with vehicle stability control (vsc) system

Toyota Sienna Service Manual / Introduction / Repair instruction / Precaution / For vehicles equipped with vehicle stability control (vsc) system

(a) Notices when using drum tester

Notices when using drum tester
Notices when using drum tester.

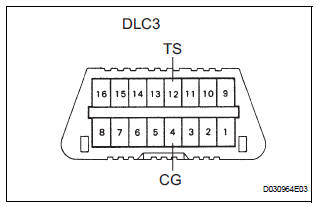

(1) When using a drum tester, be sure to start the engine with the ignition switch OFF, and connect SST to the terminals TS and CG of the DLC3 before the measurement in order to cancel the VSC operation.

SST 09843-18040

NOTICE: • Confirm that the VSC warning light blinks. • The VSC system is reset when the engine is restarted. • Fasten the vehicle with lock chains.

(b) Notice of related operations to VSC

(1) Do not carry out unnecessary installation and removal as it might disorder the adjustment of the parts related to the VSC.

(2) Be sure to carry out the preparation for operation and the confirmation of operation completion in accordance with the instructions of the text and when the operations related to the VSC are performed.

For vehicles equipped with traction control (trac) system
When using a 2-wheel drum tester such as a speedometer tester or chassis dynamometer, etc., or jacking up the front wheels and driving the wheels, always push in the TRAC cut ("TRAC OFF") ...

When towing full-time 4wd vehicles
Use one of the methods shown below to tow the vehicle. If the vehicle has trouble with the chassis or drive train, use method 1 (flat bed truck). WHEN TOWING FULL-TIME 4WD VEHICLES ...
