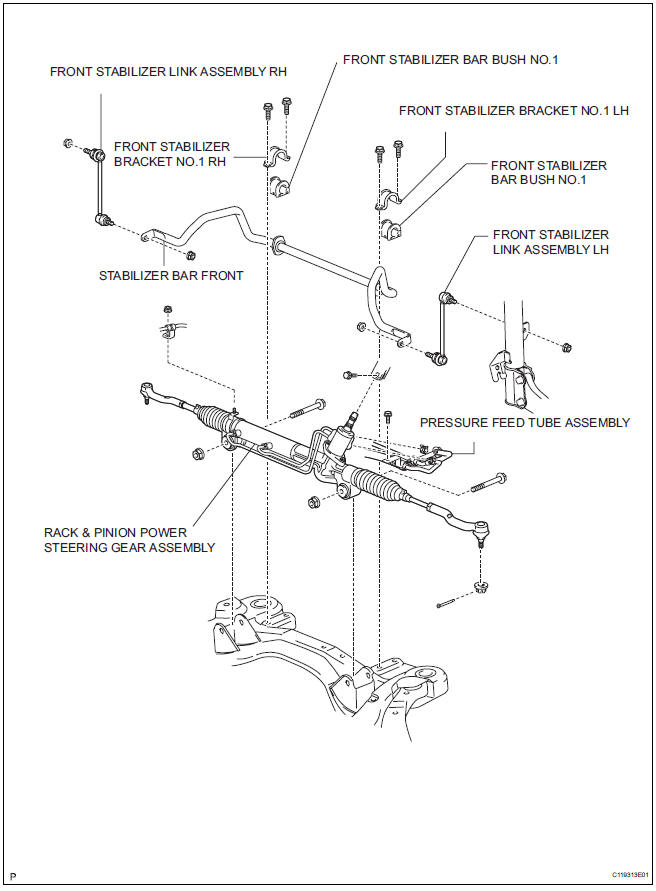

COMPONENTS

Front stabilizer bar (for 2wd)

Front stabilizer bar (for 2wd)

Installation
1. INSTALL LOWER BALL JOINT ASSEMBLY FRONT LH (a) Install the lower ball joint assembly front LH and tighten the nut. Torque: 123 N*m (1,250 kgf*cm, 91 ft.*lbf) (b) Install a new cotter pin. NO ...

Removal
1. REMOVE FRONT WHEELS 2. REMOVE FRONT STABILIZER LINK ASSEMBLY LH (a) Remove the 2 nuts and front stabilizer link assembly LH. HINT: If the ball joint turns together with the nut, use a hex ...
