Toyota Sienna Service Manual: Front wiper motor

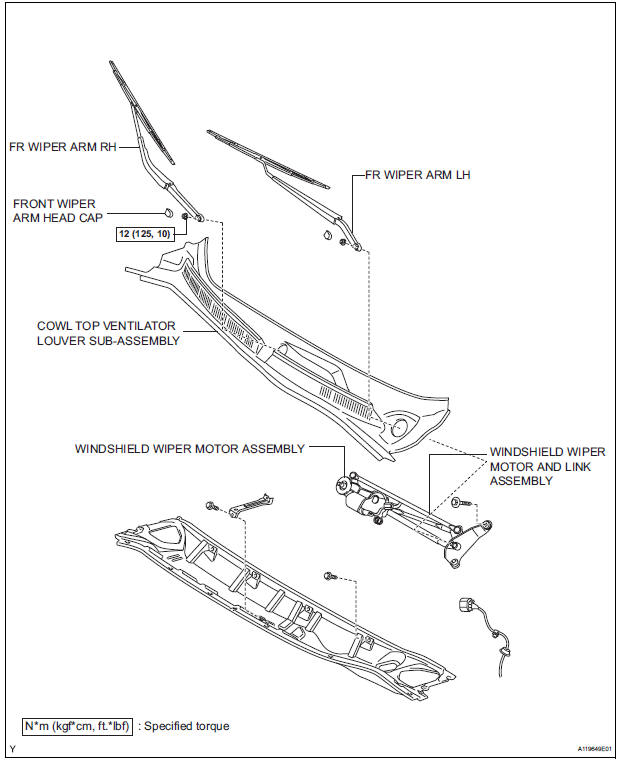

COMPONENTS

COMPONENTS

Wiper and washer system
PRECAUTION 1. PRECAUTION OF WASHER NOZZLE ADJUSTMENT  Do not clean or adjust the washer nozzle with a safety pin, etc. because;  the washer nozzle tip is made of resin and could ...

Removal
1. REMOVE FRONT WIPER ARM HEAD CAP  Using a small screwdriver, remove the 2 front wiper arm covers. HINT: Tape up the screwdriver tip before use. 2. REMOVE FR WIPER ARM RH &nbs ...
