Toyota Sienna Service Manual: Inspection

1. INSPECT 2ND BRAKE PISTON RETURN SPRING SUB-ASSEMBLY

INSPECT 2ND BRAKE PISTON RETURN SPRING SUB-ASSEMBLY

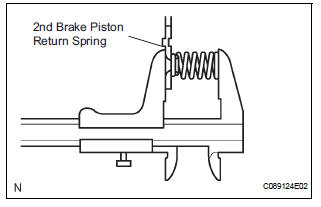

(a) Using vernier calipers, measure the free length of the spring together with the spring seat.

Standard free length: 16.61 mm (0.6539 in.)

Disassembly
1. REMOVE 2ND BRAKE PISTON RETURN SPRING SUB-ASSEMBLY (a) Place SST on the return spring and compress the return spring with a press. SST 09387-00060 (b) Using a screwdriver, remove the snap ...

Reassembly
1. INSTALL 2ND BRAKE PISTON O-RING (a) Coat 2 new O-rings with ATF, and install them in the 2nd brake piston. NOTICE: Make sure that the O-ring is not twisted or pinched. 2. INSTALL 2ND BRAK ...
