Toyota Sienna Service Manual: Inspection

1. INSPECT SPEED SENSOR (NT SENSOR)

INSPECT SPEED SENSOR (NT SENSOR)

(a) Disconnect the speed sensor connector from the transaxle.

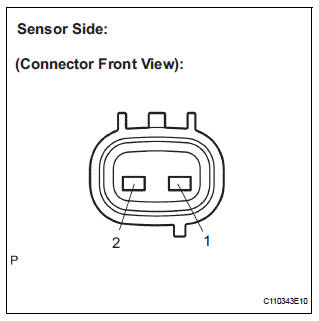

(b) Measure the resistance according to the value(s) in the table below.

AISIN made:

TOYOTA made:

2. INSPECT SPEED SENSOR (NC SENSOR)

INSPECT SPEED SENSOR (NC SENSOR)

(a) Disconnect the speed sensor connector from the transaxle.

(b) Measure the resistance according to the value(s) in the table below.

AISIN made:

TOYOTA made:

Removal
1. REMOVE BATTERY 2. REMOVE AIR CLEANER ASSEMBLY HINT: (See page EM-26) 3. REMOVE SPEED SENSOR (NT SENSOR) (a) Disconnect the speed sensor connector. (b) Remove the bolt and speed sensor. ...

Installation
1. Install speed sensor (nc sensor) (a) Coat the O-ring with ATF. (b) Install the speed sensor with the bolt. Torque: 11 N*m (115 kgf*cm, 8 ft.*lbf) HINT: Make sure to install the same manu ...
