Toyota Sienna Service Manual: Inspection

1. Inspect heated oxygen sensor (for bank 1 sensor 2)

Inspect heated oxygen sensor (for bank 1 sensor 2)

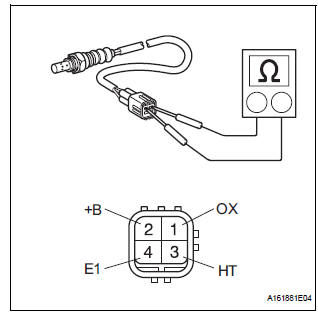

(a) Measure the resistance of the sensor.

Standard resistance

If the resistance is not as specified, replace the sensor.

2. HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)

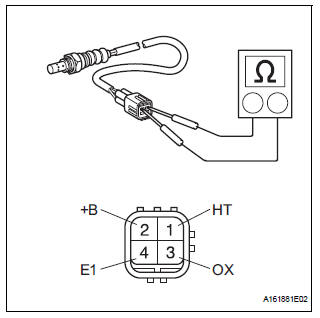

(a) Measure the resistance of the sensor.

HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)

Standard resistance

If the resistance is not as specified, replace the sensor.

Removal
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL 2. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2) (a) Disconnect the sensor connector under the center console. (b) Using SST, remove the ...

Installation
1. INSTALL HEATED OXYGEN SENSOR (for Bank 2 Sensor 2) (a) Using SST, install the heated oxygen sensor to the front exhaust pipe. SST 09224-00010 Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf) for us ...
